Let’s clear this up once and for all—because there’s a ton of confusion about heat exchangers on the 2003–2007 5.9L Cummins trucks. Some guys say bypass it, others swear you need it, and most don’t actually know how it works.
The truth? The factory heat exchanger can either help your truck—or totally wreck it. It all depends on how you drive, where you live, and what kind of setup you’re running.
What Does the Heat Exchanger Do?
The OEM heat exchanger is a liquid-to-liquid cooler. It transfers heat between your engine coolant and transmission fluid. In basic terms:
- If coolant is hotter than the trans, it helps warm the trans up (great for winter).
- If the trans is hotter than the coolant, it helps pull heat from the transmission (great for towing or hot summer driving).
This thermal balance keeps both systems stable—if it’s working correctly.
Why the Factory Units Fail
The stock heat exchanger uses a thin, crimped internal core. Over time—with heat, pressure, and vibration—it can fail internally and allow transmission fluid and coolant to mix.
This is when you get the dreaded “strawberry milkshake”: frothy, pink sludge exploding out of the overflow tank or radiator cap—and a completely destroyed transmission not long after.
What Happens When It Fails:
- Coolant contaminates transmission fluid → ruins clutches, converter, valve body
- Trans fluid contaminates coolant → damages water pump, heater core, radiator
- Pressure spikes → hoses blow off, seals pop, temps go crazy
We’ve seen this failure too many times to count—and the damage adds up fast.
When Bypassing Makes Sense
If you’re running a race truck, drag build, or summer-only setup that never sees winter, you can bypass the heat exchanger and be fine.
We sell a bypass kit for that exact reason. It’s simple, clean, and eliminates the risk of fluid mixing.
Click here to shop our Heat Exchanger Bypass Kit
But Don’t Bypass If You…
- Daily drive your truck year-round
- Live in extremely cold or hot climates
- Tow heavy or run long hauls
- Want smooth shifts and proper fluid temp control
In cold temps, the heat exchanger helps warm up thick transmission fluid—avoiding harsh shifts and blown seals. In hot temps, it helps cool trans fluid by offloading heat into the radiator circuit.

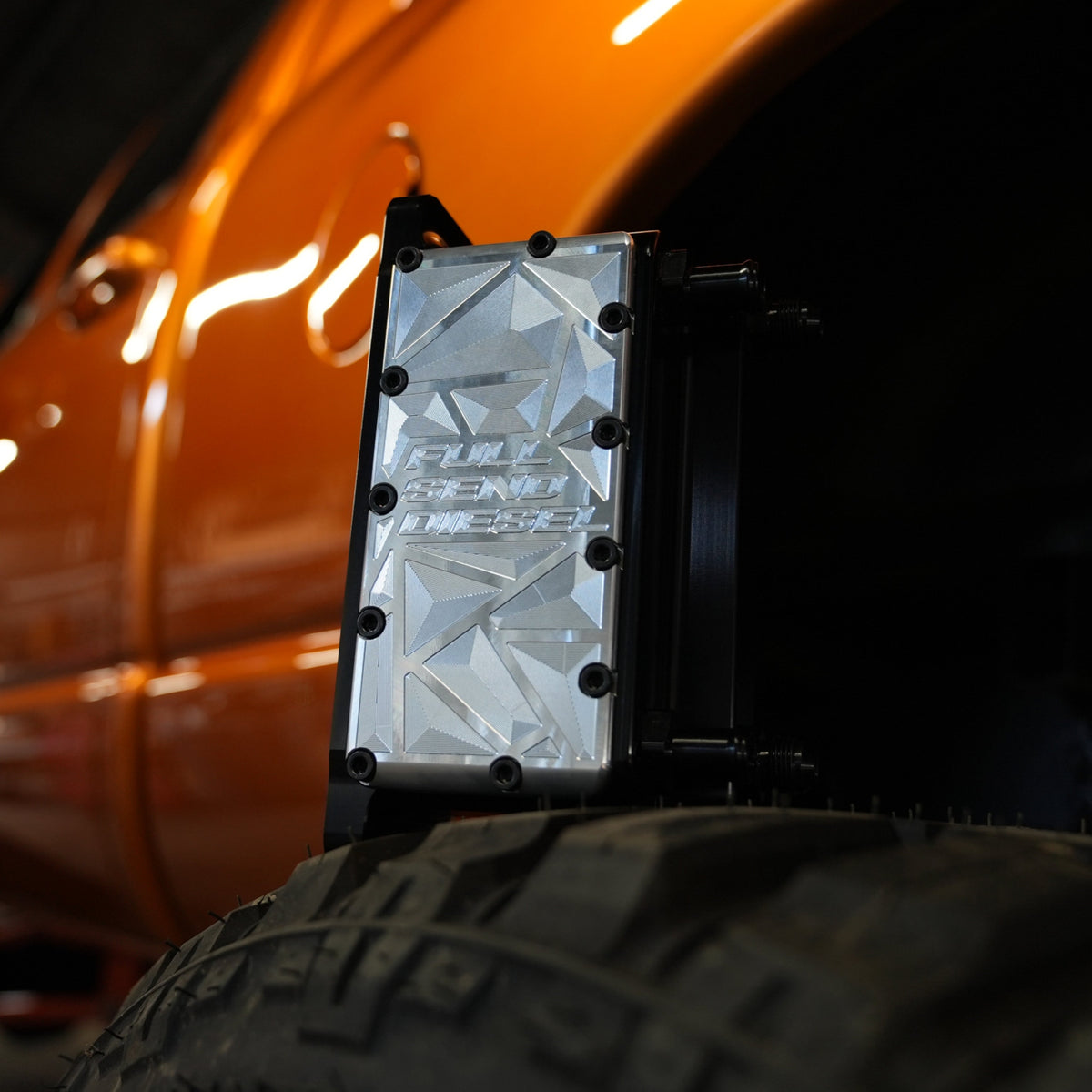

The Right Way: Full Send Diesel Billet Heat Exchanger
If you want to keep the function of the heat exchanger—but never worry about failure again—this is the answer. Our billet heat exchanger replaces the weak factory unit with a fully CNC-machined solution built to last forever.
What Makes Ours Better:
- Solid billet aluminum construction
- Internal baffling for smooth, unrestricted flow
- Completely isolated—can’t mix fluids
- ORB threads for AN line compatibility
- Pressure tested to 150 PSI+
- Black anodized finish with lifetime warranty
Comparison Chart
| Feature | Factory Heat Exchanger | FSD Billet Heat Exchanger |
|---|---|---|
| Construction | Crimped core with stamped plates | One-piece billet CNC machined |
| Failure Risk | High – known to mix fluids over time | Zero – fully isolated internals |
| Pressure Rating | ~0-300 PSI | 1200+ PSI tested |
| Compatibility | Stock hoses only | AN line ready with ORB ports |
| Warranty | None | Lifetime warranty |
Bottom Line
Bypassing the heat exchanger works for some trucks. But for most builds—especially daily drivers or heavy haulers—the right fix is to upgrade the exchanger, not remove it.
Our billet unit keeps all the benefits of the factory system without the risk of catastrophic failure. It’s the permanent solution your truck should’ve come with from the factory.
Order the Full Send Diesel Billet Heat Exchanger Here
Need help figuring out whether to bypass or upgrade? Shoot us a message—we’ll walk you through the best setup for your truck, your climate, and your driving style.
