Hamilton Cams 188/220 Street/Strip Cam Combo for 1989-1998 Dodge 5.9L Cummins 12V
- Make: Dodge/Ram
- Year/Engine: 1994-1998 5.9L 12V Cummins
The 188/220 street/strip cam combo for the 12-valve Cummins, the 40-60 HP grind packaged with the matched valvetrain to install it right.

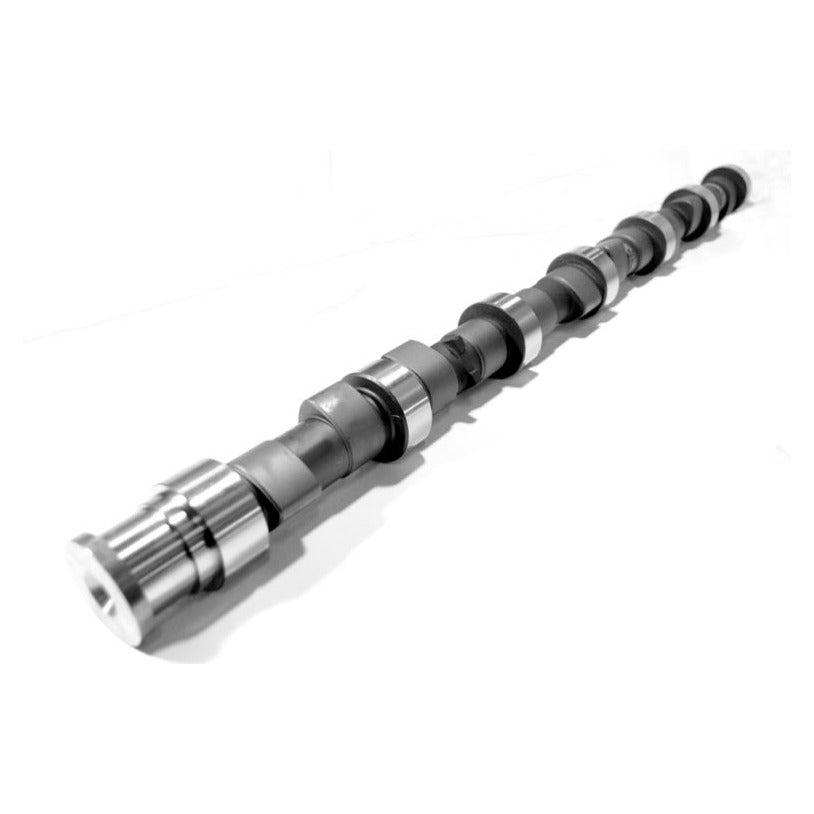

- 188/220 street/strip camshaft (1,700-4,500 RPM, 40-60 HP)
- 165# conical valve springs with retainers and locks

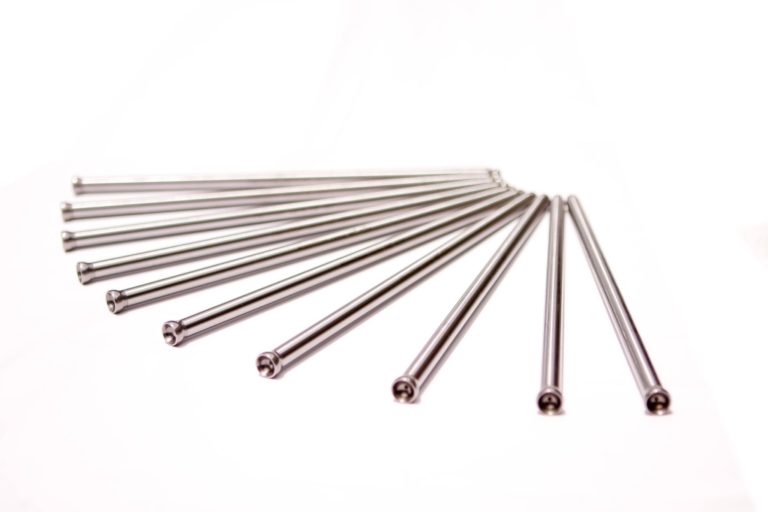

- 12-valve heavy-duty pushrods

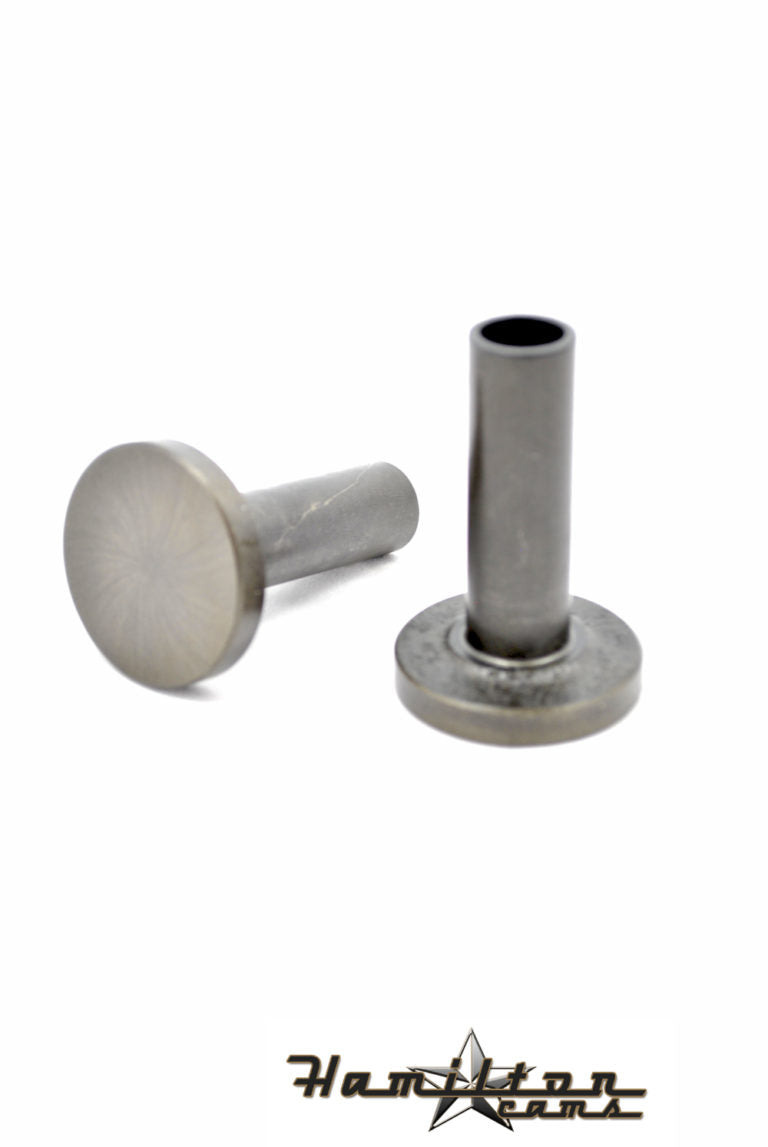

- Lifters included
Buying the combo gets you the matched Hamilton valvetrain, which keeps the cam warranty intact.
Fits: 1989-1998 Dodge 5.9L 12V Cummins.
Break-In & Install
Drop-in clearance (188/220, 12V): no more than .018" piston protrusion, at least .055" valve face depth, standard head gasket, 99 intake centerline.
We always recommend new lifters when changing a cam. Follow this break-in to protect the lobes:
- Apply a liberal amount of quality assembly lube to the camshaft.
- Do not let the engine start without oil pressure, we suggest not changing the engine oil until after the engine has been started.
- On a new engine, pack assembly lube into the oil pump and prime the oil filter so the cam gets oil fast.
- Disconnect the fuel system and crank with the starter until you read oil pressure or see oil at the rocker arms. Don't run the starter more than 10 seconds at a time.
- Once oil pressure is verified, start the engine and run it at 1,200-1,500 RPM for five minutes, then shut down.
- On a new engine, retorque the head (expect .003"-.004" more gasket crush, which changes valve lash, readjust the valves). Then you're cleared to use it.
At Full Send Diesel, we don't just sell parts. We stand behind them. Hamilton Cams machines their Cummins camshafts, valvetrain, and hard parts right here in the USA, and their commitment to performance and reliability lines up with how we build trucks.
We don't just carry Hamilton as a brand. We run their parts in our personal trucks, our in-house builds, and every giveaway truck we put together. If it's not good enough for our own trucks, it's not good enough for our customers. Hamilton Cams has earned our trust, on the street and on the dyno.
