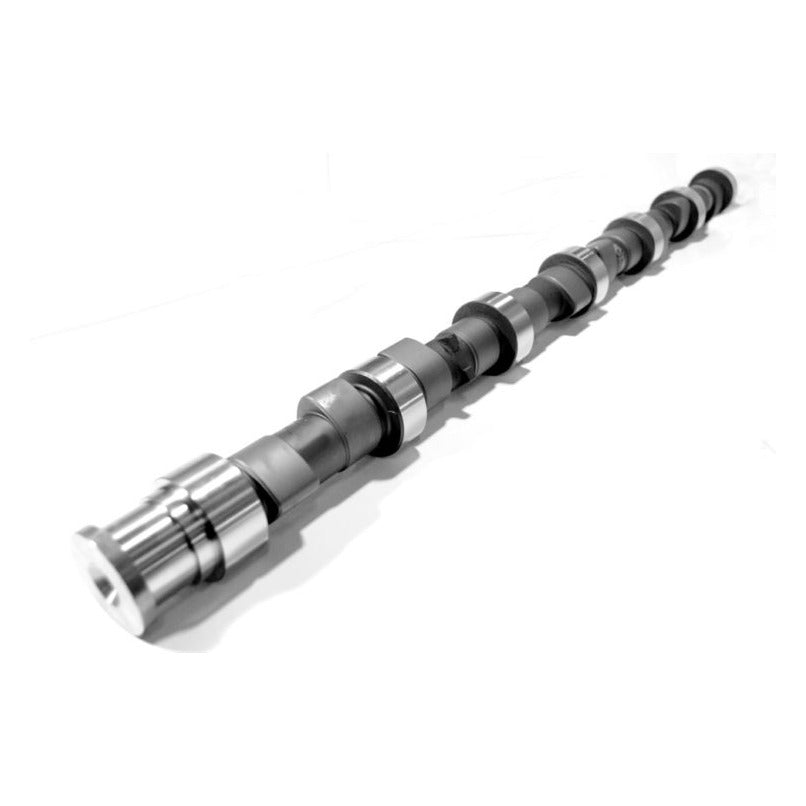

The steel-core version of Hamilton's 178/208 towing cam, for high-horsepower builds that need the strength of a billet-steel camshaft. Same efficiency-focused grind, built to take more abuse.
- Duration at .050": 178 intake / 208 exhaust
- Steel core for high-HP, high-pressure builds
- Requires full Hamilton cam bushings (steel cam runs on bushings, not stock bearings)
Warranty note: Hamilton only warranties their cams when run with Hamilton tappets and springs. Steel cams require steel tappets.
Fits: 1998.5-2018 Dodge/Ram 5.9L/6.7L Cummins 24V.
Break-In & Install
Drop-in clearance: 12V, no more than .020" piston protrusion, at least .055" valve face depth. 24V, no more than .020" protrusion, at least .038" valve face depth. Steel cam, requires full cam bushings and steel tappets. Always check clearances.
We always recommend new lifters when changing a cam. Follow this break-in to protect the lobes:
- Apply a liberal amount of quality assembly lube to the camshaft.
- Do not let the engine start without oil pressure, we suggest not changing the engine oil until after the engine has been started.
- On a new engine, pack assembly lube into the oil pump and prime the oil filter so the cam gets oil fast.
- Disconnect the fuel system and crank with the starter until you read oil pressure or see oil at the rocker arms. Don't run the starter more than 10 seconds at a time.
- Once oil pressure is verified, start the engine and run it at 1,200-1,500 RPM for five minutes, then shut down.
- On a new engine, retorque the head (expect .003"-.004" more gasket crush, which changes valve lash, readjust the valves). Then you're cleared to use it.
