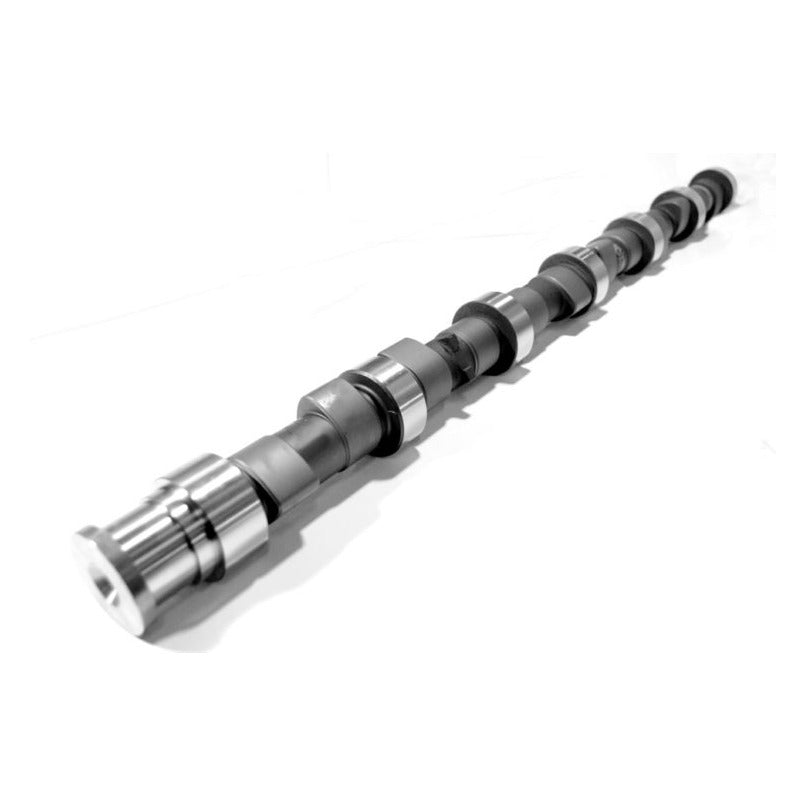

The 188/220 is Hamilton's hot street/strip cast cam, a step up in power over the towing grind. Expect 40-60 HP depending on fueling and turbo, with EGT down 200-300F. Best matched to a 64mm or larger single or larger twins.
- Duration at .050": 188 intake / 220 exhaust
- RPM range: 1,700-4,500
- Gains: 40-60 HP depending on fueling and turbo
- Pairs with 64mm+ single turbos or larger twins
Warranty note: Hamilton only warranties their cams when run with Hamilton tappets and springs.
Fits: 1989-2018 Dodge/Ram 5.9L/6.7L Cummins, 12V and 24V. (Drop-in fit requires no more than .018" piston protrusion and the correct valve face depth, otherwise requires machining.)
Break-In & Install
Drop-in clearance: 12V, no more than .018" piston protrusion, at least .055" valve face depth, standard head gasket, 99 intake centerline. 24V, no more than .018" protrusion, at least .038" valve face depth, standard gasket. If you don't meet clearance, run an oversize head gasket or cut valve reliefs. Always check clearances.
We always recommend new lifters when changing a cam. Follow this break-in to protect the lobes:
- Apply a liberal amount of quality assembly lube to the camshaft.
- Do not let the engine start without oil pressure, we suggest not changing the engine oil until after the engine has been started.
- On a new engine, pack assembly lube into the oil pump and prime the oil filter so the cam gets oil fast.
- Disconnect the fuel system and crank with the starter until you read oil pressure or see oil at the rocker arms. Don't run the starter more than 10 seconds at a time.
- Once oil pressure is verified, start the engine and run it at 1,200-1,500 RPM for five minutes, then shut down.
- On a new engine, retorque the head (expect .003"-.004" more gasket crush, which changes valve lash, readjust the valves). Then you're cleared to use it.
