Aeromotive A1000 Carbureted Bypass Regulator - 2-Port
- Make: Universal
Not sure which part you need, or want to make sure it's in stock?
Give us a call. You won't get a robot, you'll get straight through to a real person who knows diesel.

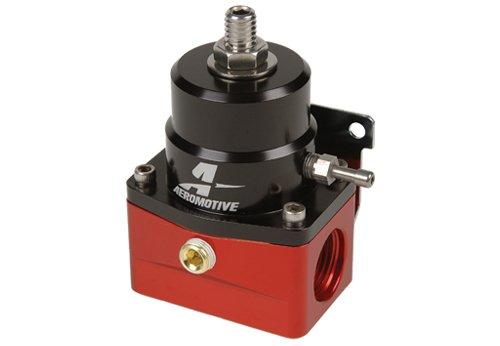

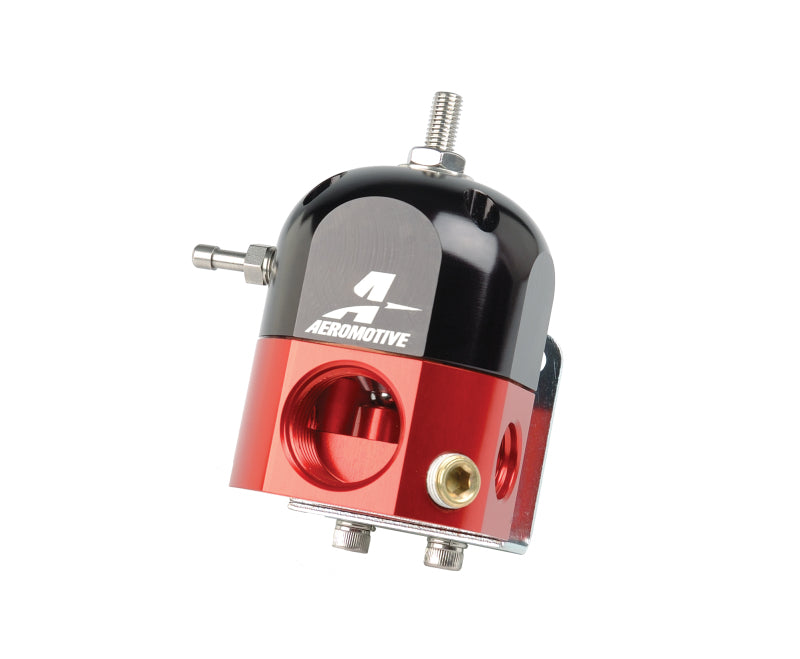

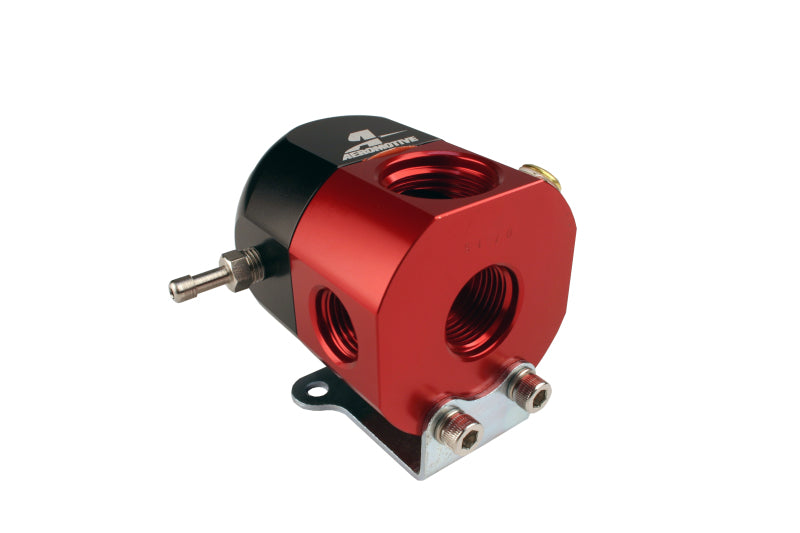

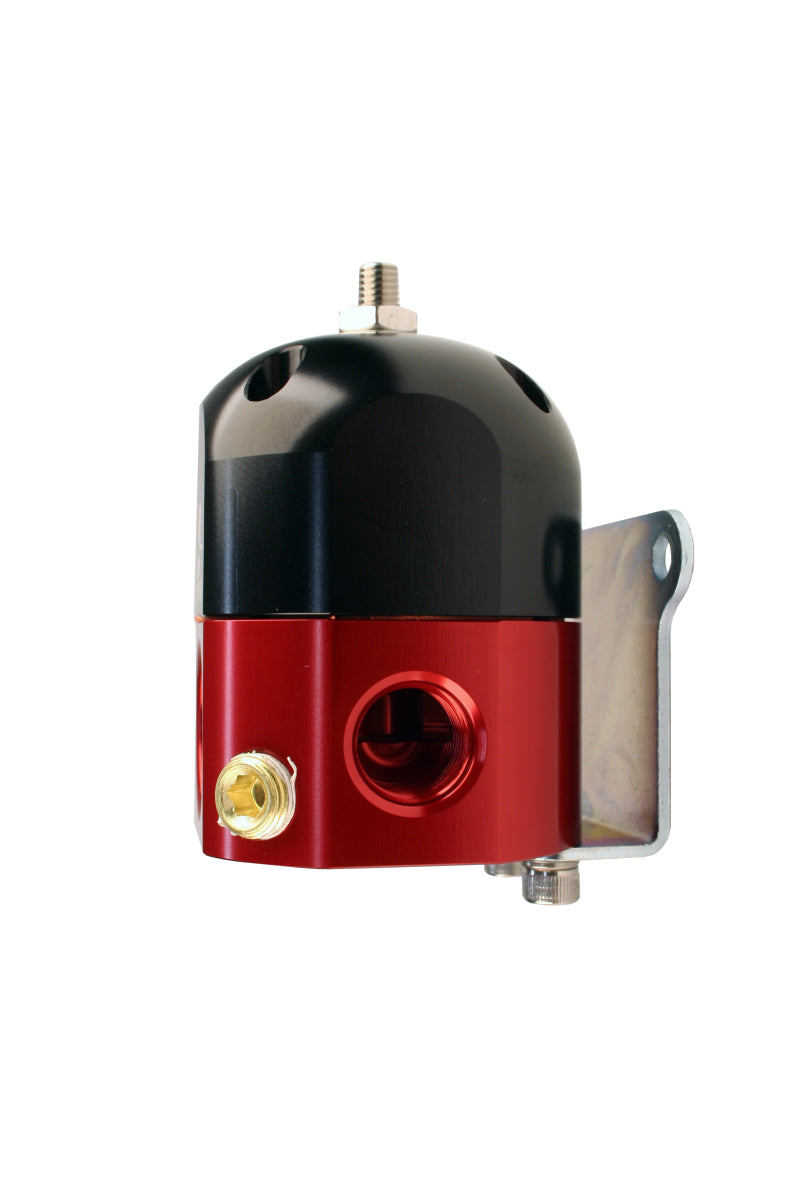

Aeromotive A1000 Carbureted Bypass Regulator - 2-Port
The A1000 Bypass Regulator was designed for use with our A1000 Fuel Pump or similar style EFI pumps in a carbureted application. This regulator is perfect for naturally aspirated or ?blow-through? supercharged engines. Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10 inlet port and (1) ORB-08 return port. P/N 13204 provides (2) ORB-06 outlet ports and 1/8' NPT gauge port. Fuel pressure rises on a 1:1 ratio when referencing boost. Bypass design provides the ultimate, dynamic fuel delivery system. Ideal for converting from fuel injection to carburetion using the stock, in-tank pump. EFI conversions will require a larger-than-stock return line for proper low pressure control.?Note: Requires AN-08 return line from bottom of regulator back to top of the tank.
Installation InstructionsInstallation Instructions
