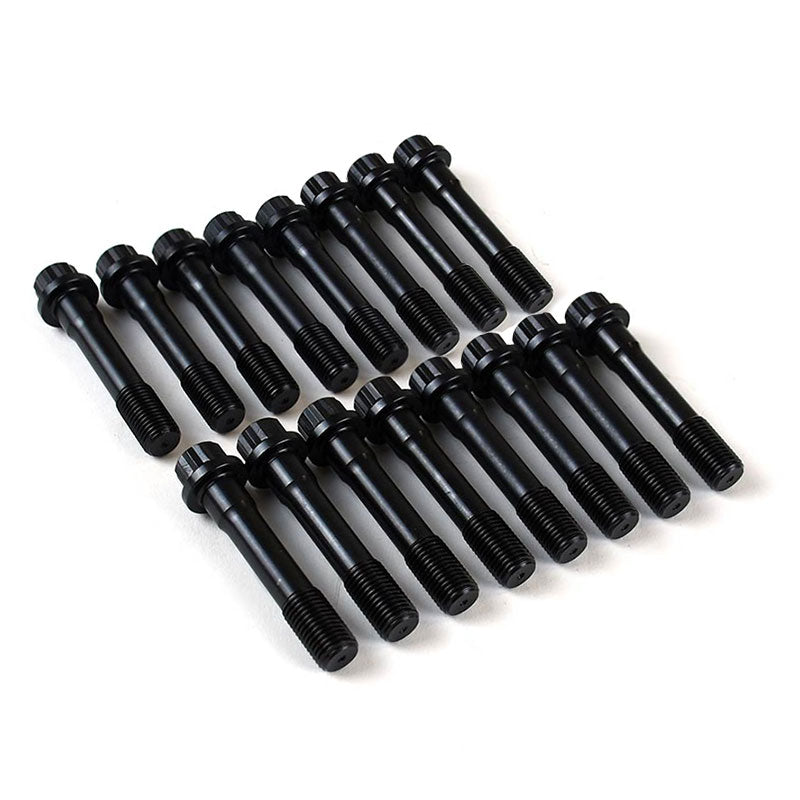

Upgrade the factory connecting rod bolts on your 2001-2010 GM 6.6L Duramax LB7/LLY/LBZ/LMM with the XDP Connecting Rod Bolt Kit XD3019RB.

Constructed from Chrome Moly with a proprietary element added for additional strength. A tensile strength between 220K-236K psi and a yield strength between 210K-230K psi ensures these bolts can handle the increased power and will not stretch like the factory bolts.

Each bolt is manufactured in an ISO/TS 16949 quality control factory and features threads that have been rolled after being heat treated. These bolts are perfect for high-performance applications and are reusable when compared to some of the OEM Torque-To-Yield (TTY) bolts which much be replaced after each use.

Assembly lubricant sold separately.

Features:

  • Upgraded Connecting Rod Bolts
  • Yield Strength 210K psi - 230K psi
  • Tensile Strength 220K psi - 236K psi
  • Will Not Stretch Like The Factory Bolts
  • Thread Has Been Rolled After Heat Treatment
  • High-Strength 8740 Chrome Moly Construction
  • 10mm Studs Test Out At A Max Load: Over 120KN
  • Manufactured In An ISO/TS 16949 Quality Control Factory
  • Bolts Are Reusable, Unlike Torque-To-Yield (TTY) Bolts Which Much Be Replaced After Each Use

Tech Tips: XDP X-TRA Slick Engine & Fastener Assembly Lubricant (Sold Separately): The use of XD541 is highly recommended during engine assembly. Apply XDP X-TRA Slick Lubricant to head studs, head bolts, main studs, main bolts, connecting rod bolts, and any other fasteners used during engine assembly.

Using a proper assembly lubricant during fastener installation reduces friction and torque pre-load scatter in the torquing sequence, while also helping to prevent thread galling and seizing.
