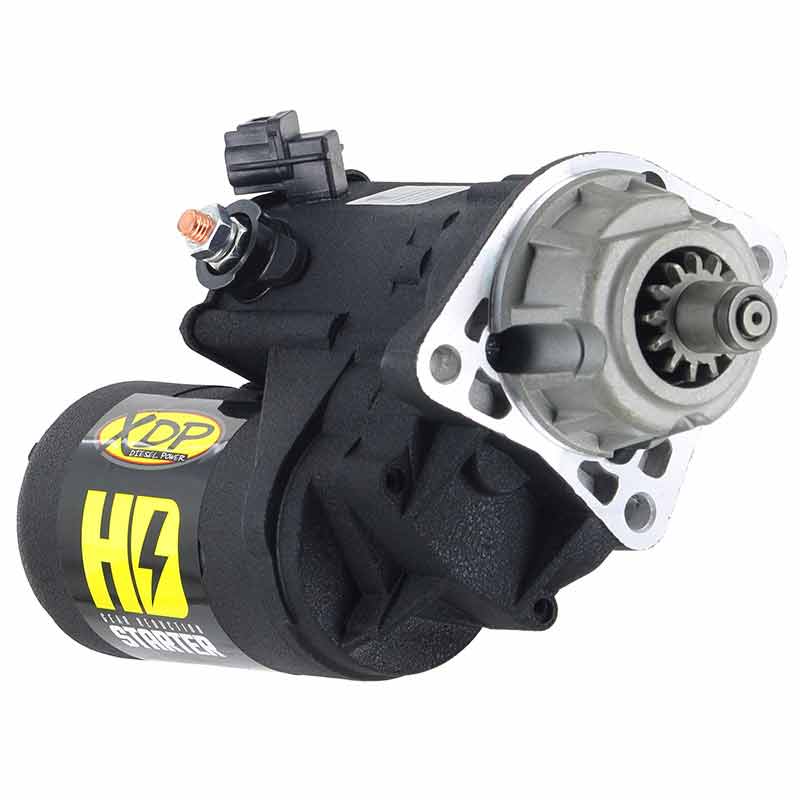

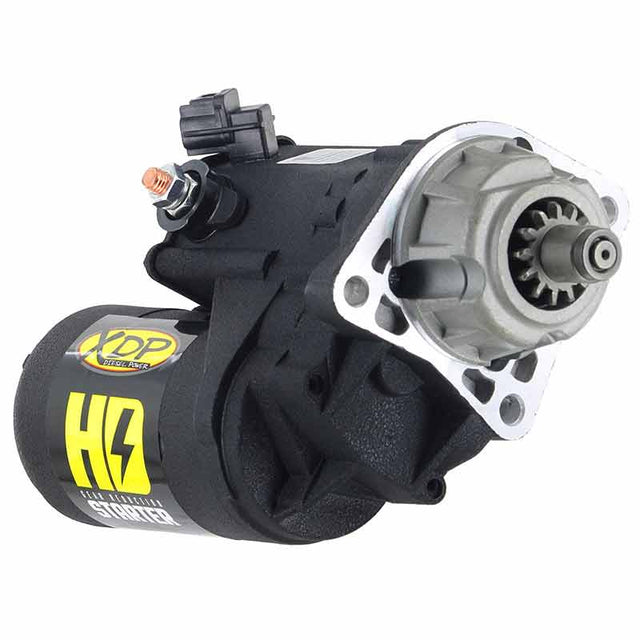

XDP Gear Reduction Starter 03-06 Dodge 5.9L Cummins Wrinkle Black XD258

XDP Gear Reduction Starter 03-06 Dodge 5.9L Cummins Wrinkle Black XD258

XDP Gear Reduction Starter 03-06 Dodge 5.9L Cummins Wrinkle Black XD258

Regular price $289.95
/
0 Entries 0x

Shipping calculated at checkout.
  • Secure payments
  • Most products are instock ready to ship, how ever some products may be backordered. Want to know if this product is INSTOCK before ordering? Email us at Sales@Fullsenddiesel.com
  • Buyer Protection Activated

While a giveaway is live (See official rules at the bottom of the page) simply purchase the products you want as you normally would & your entries will automatically be received. Once the giveaway is over, our sweepstakes company will pick a winner & we will CALL to notify the winner. This will also be streamed live to our instagram (@FullSendDiesel). We will NEVER DM you or message you on social media telling you that you won. Those are scams, please be very careful.

-

Questions? Email us at Sales@FullSendDiesel.com

You can rely on the XDP Wrinkle Black Gear Reduction Starter XD258 to get your 2003-2006 Dodge 5.9L Cummins running in the most extreme environments. XDPs Gear Reduction Starters are faster, stronger, and more durable than your factory starter. This gives you the ability to turn over even the most aggressive diesel engines.

XDP's Gear Reduction Starters feature a smaller motor that is faster, more efficient, and draws less amperage. The Gear Reduction Design produces more torque than a factory unit, at about a third of the size. This not only reduces weight, but also makes a more compact design for easier installation. Each starter comes pre-tested, ready for installation and Features a durable Wrinkle Black finish for corrosion resistance and aesthetics.
Features:

  • Gear Reduction Design
  • Wrinkle Black Finish
  • Increased Durability
  • Made in the USA!
  • 1-Year Warranty

Specifications:

  • 3.6 HP
  • 2.7 KW
  • 260 Ft-Lbs. Torque
  • 3.75:1 Gear Reduction

Tech Notes:
Depending on the conditions, a starter can pull up to 500 amps. These levels of amperage stress ALL components in the circuit including cables, terminals, batteries, and more. Problems with these components can be difficult to diagnose as they appear fine at rest and under a light load, but generate high resistance under heavy amperage draws.

This results in low voltage to the starter while cranking, causing heavier amperage draw, and increased heat leading to starter failure. Batteries, cables and additional components should be checked and serviced regularly. Voltage measured at the starter during cranking should always be above 9.5V DC. Starter heat shields are not required, but are an excellent idea for heat protection.
Warranty Info:
Products manufactured by XDP carry a 1-Year warranty against defects in materials and craftsmanship. The Warranty is Limited to one (1) year from the date of sale and limited solely to the parts contained within the product's kit.
