XDP X220 Series Head Stud Kit XD3017HS

XDP X220 Series Head Stud Kit XD3017HS
XDP X220 Series Head Stud Kit XD3017HS

XDP X220 Series Head Stud Kit XD3017HS

Regular price $574.95

Shipping calculated at checkout.
  • Secure payments
  • Most products are instock ready to ship, how ever some products may be backordered. Want to know if this product is INSTOCK before ordering? Email us at Sales@Fullsenddiesel.com
  • Buyer Protection Activated

While a giveaway is live (See official rules at the bottom of the page) simply purchase the products you want as you normally would & your entries will automatically be received. Once the giveaway is over, our sweepstakes company will pick a winner & we will CALL to notify the winner. This will also be streamed live to our instagram (@FullSendDiesel). We will NEVER DM you or message you on social media telling you that you won. Those are scams, please be very careful.


Questions? Email us at Sales@FullSendDiesel.com

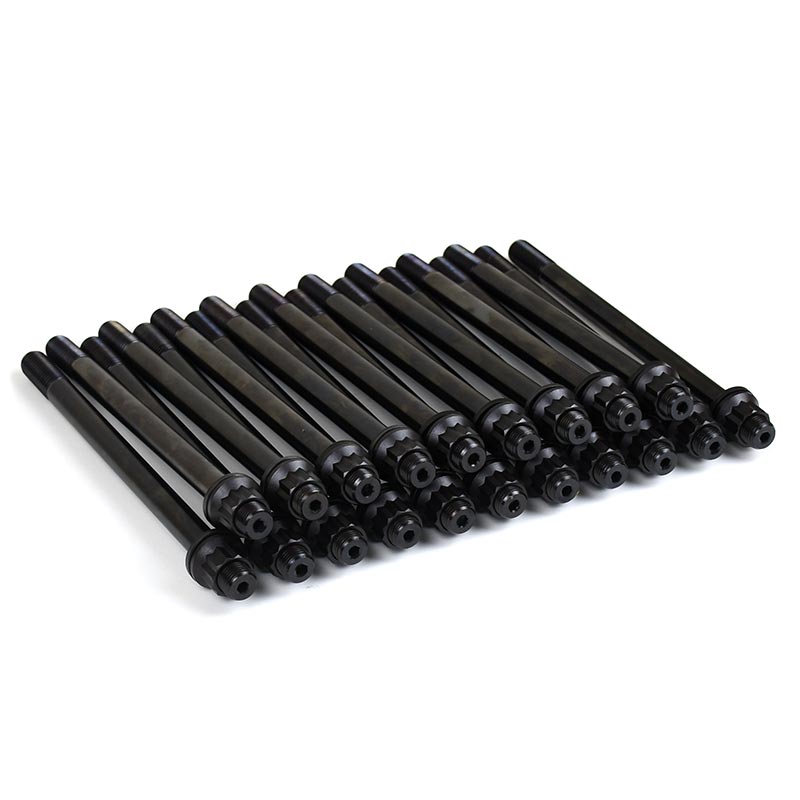

Upgrade the OEM head bolts on your 2017-2023 GM 6.6L Duramax L5P when you purchase the XDP X220 Series Head Stud Kit XD3017HS. Upgrading the factory head bolts is a must when start adding horsepower and torque to your Silverado/Sierra.

The factory bolts typically can't handle the additional pressure in high-performance applications which can lead to the cylinder heads lifting. Upgrading to the XDP head studs helps to keep the cylinder heads locked down and avoid potential head gasket failures.

Constructed using an 8740 Chromoly Steel with an added proprietary element ensures these studs are stronger and will not stretch like the stock bolts. The threads are rolled after heat-treating to deliver maximum fatigue strength.

These studs are rated at 205,000+ psi yield strength and 225,000+ psi tensile strength to ensure a strong hold under higher combustion pressures. In addition to the increased strength, replacing the head bolts with studs also allows you to obtain a more accurate torque reading.

A conventional bolt gets twisted as it is tightened, so it's reacting to two different forces at the same time. With a stud the force gets applied to the vertical axis, resulting in a more even clamping force.

Another benefit of studs is they allow for easier engine assembly and proper alignment of the cylinder heads every time. These are a must-have for high-performance applications and are reusable, unlike the OEM Torque-To-Yield (TTY) bolts which must be replaced after each use.

The studs are manufactured in an ISO/TS 16949 quality control facility. Included with the studs are washers and 12-point nuts. Assembly lubricant sold separately.

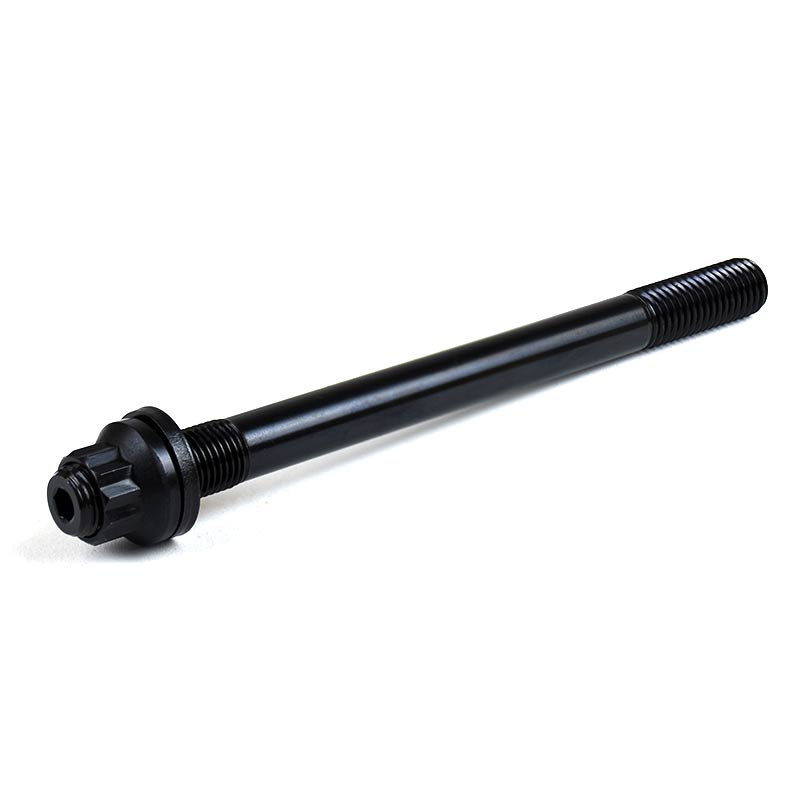

  • Includes Washers & 12-Point Nuts
  • Yield Strength 205K psi - 215K psi
  • Tensile Strength 225K psi - 233K psi
  • Will Not Stretch Like The Factory Studs
  • Thread Has Been Rolled After Heat Treatment
  • High-Strength 8740 Chromoly Steel Construction
  • 10mm Studs Test Out At A Max Load: Over 120KN
  • Manufactured In An ISO/TS 16949
  • Quality Control Factory Studs Are Reusable, Unlike Torque-To-Yield (TTY) Bolts Which Much Be Replaced After Each Use

Tech Tips: XDP Thread Cleaning Chasers (Sold Separately): The XDP Thread Cleaning Chasers XD40124TC & XD40128TC are the perfect add-on to any head stud installation. Using Thread Cleaning Chasers ensures that you are able to properly clean the threads in your engine block before the installation of any studs or fasteners.

Clean threads will provide you with accurate torque readings which are critical to your head gasket repair, or engine build. XDP X-TRA Slick Engine & Fastener Assembly Lubricant (Sold Separately): The use of XD541 is highly recommended during engine assembly.

Apply XDP X-TRA Slick Lubricant to head studs, head bolts, main studs, main bolts, connecting rod bolts, and any other fasteners used during engine assembly.

Using a proper assembly lubricant during fastener installation reduces friction and torque pre-load scatter in the torquing sequence, while also helping to prevent thread galling and seizing.
