Hamilton Cams

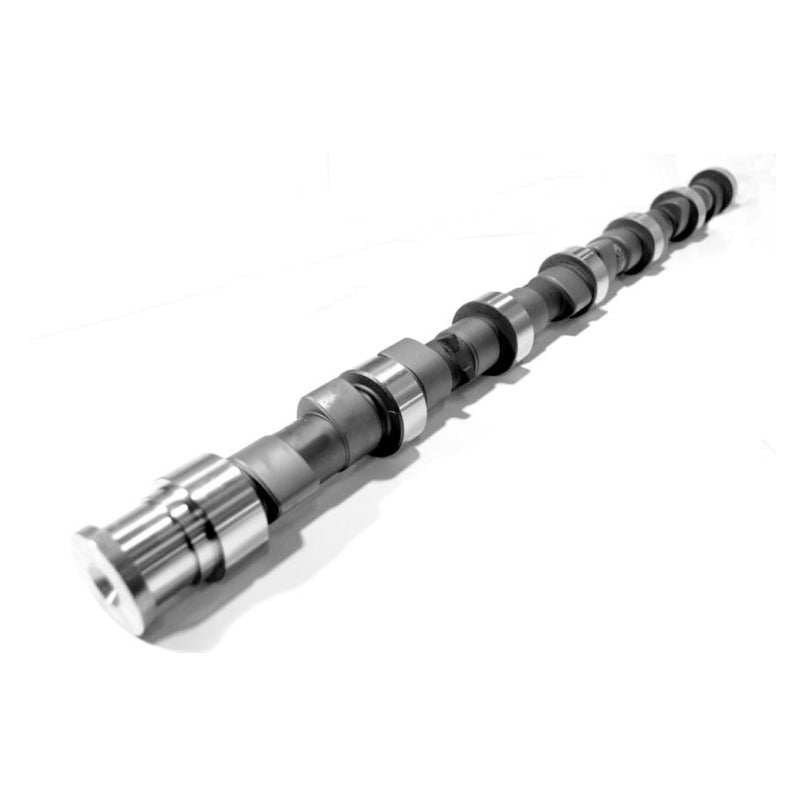

188/220 - Hot Street/Strip Cam (Steel)

SKU: 07-c-188/220S
$699.00

Have Questions?

📱 Call Us 💬 Text Us

Information:

  • RPM Range: 1700-4500

  • Drops EGT 200-300

  • Increased  power we have seen 40-60hp depending on fueling and turbo.

  • Duration at .050″ of lift  188 Intake, 220 Exhaust

  • We only offer warranty on our cams if our lifters and springs are used.

Modification Required:

  • For it to be “drop in” on a 12v you will need no more than .018″ piston protrusion and at least .055″ valve face depth with a standard head gasket and a 99 intake centerline. On a 24v you will need no more than .018″ piston protrusion and at least .038″ valve face depth with a standard gasket. If you do not meet the minimum requirements for piston to valve clearance, don’t worry, you can still run an oversize head gasket or cut valve reliefs.

  • Although this is considered a drop in cam it is important to check clearances

  • For the Steel version you will need at least two bushings installed in the cam tunnel, otherwise the steel could eat into the cast iron block

  • We always recommend new lifters when changing a cam.

Applications:

  • Drag strip

  • Stock class pulling

Break in:

To make sure that you have no issues during break-in, follow these few suggestions.

  • Make sure that the cam has a Liberal amount of quality assembly lube applied

  • DO NOT let the engine start without oil pressure

  • When this is a new engine, be sure to put a liberal amount of assembly lube in the oil pump and prime the oil filter

  • Be sure to change the oil after you have done your break-in procedure. When the filter and oil system are already primed, engine will get oil pressure much faster than if the oil is changed at the same time.

  • Disconnect the fuel system and spin the engine with the starter until oil pressure can be read or until oil is coming out of the rocker arms.

  • Once oil pressure has been verified, let the engine start and run until up to operating temp

  • Adjust valves then you are cleared to abuse your engine. Enjoy the added airflow

  • if you need to re-torque or “hot-torque “the head, do so before adjusting valves. When you retorque the head, the valve lash setting, so it is important to set lash last.

⌕
