AEM 12 Position Universal Trim Pot

SKU: AEM30-2056
$39.99
  • Make: Universal

Not sure which part you need, or want to make sure it's in stock?

Give us a call. You won't get a robot, you'll get straight through to a real person who knows diesel.

📱 Call Us

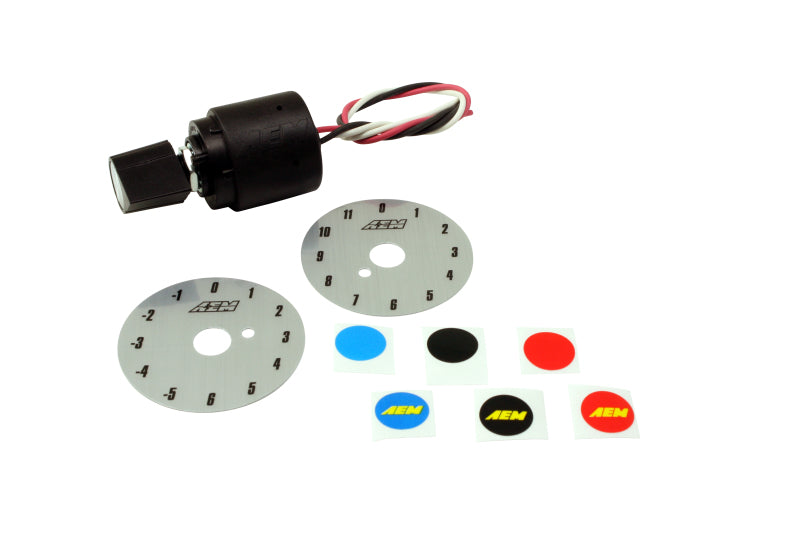

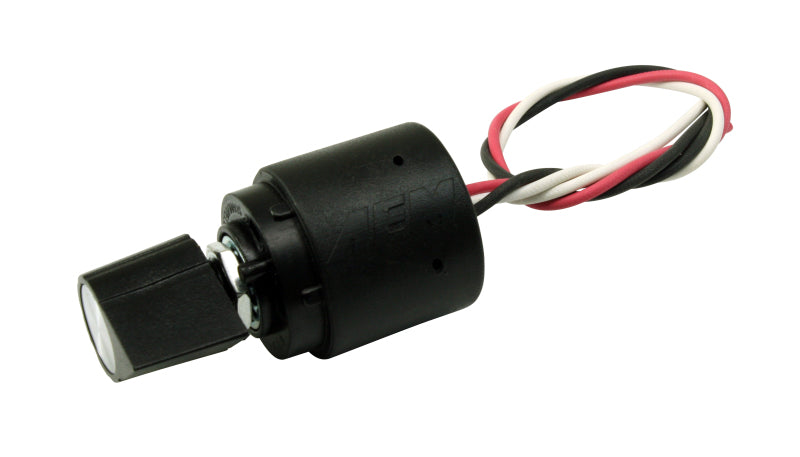

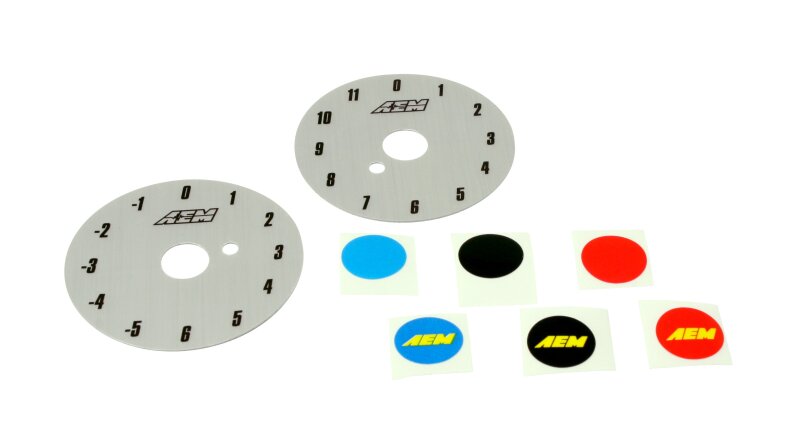

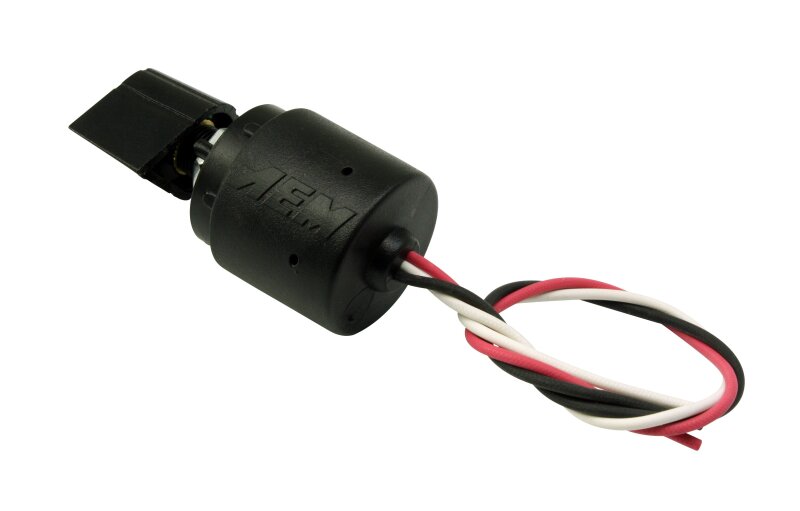

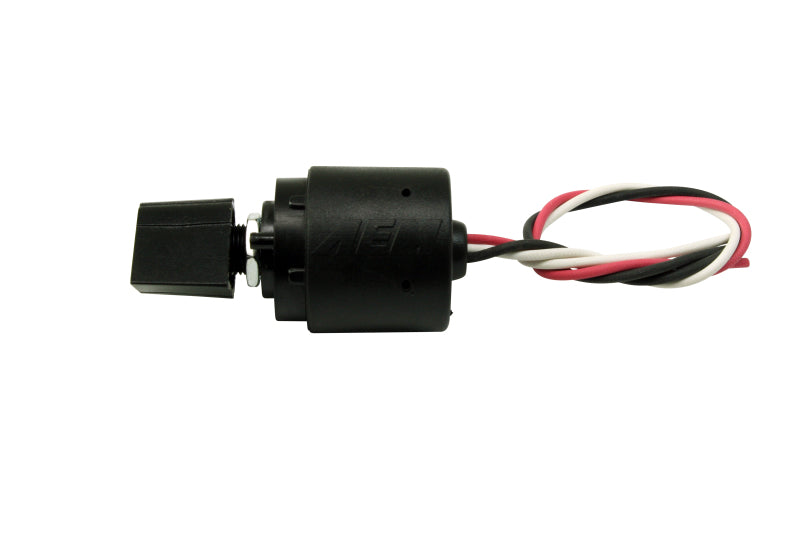

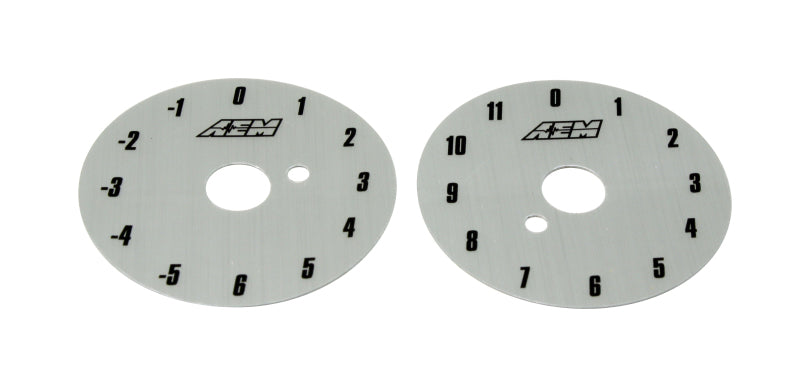

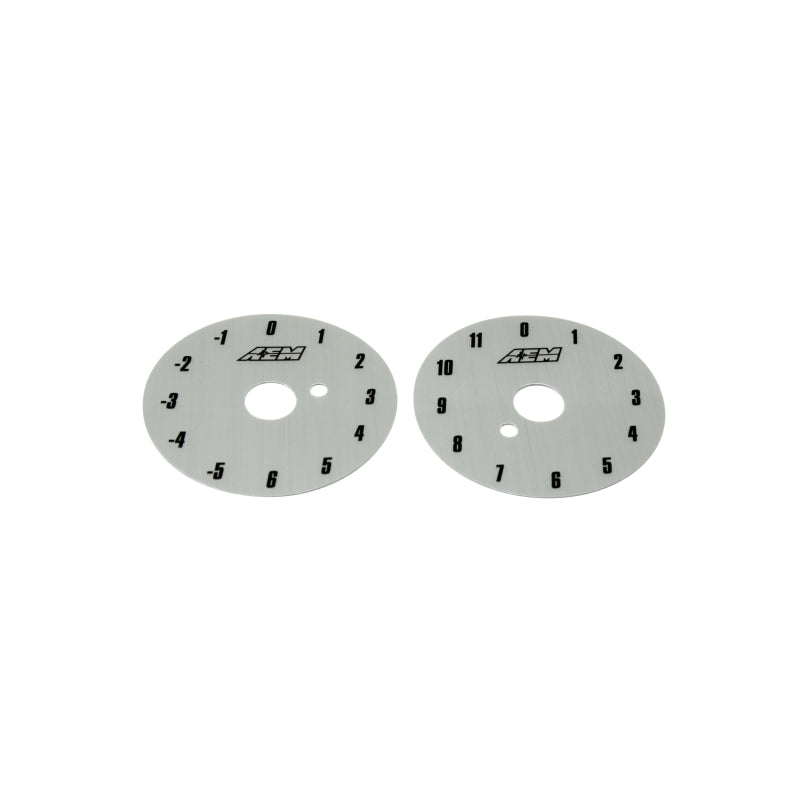

The Universal 12 Position Trim Pot is for use on virtually any Engine Management System, such as the AEM EMS. Use the Trim Pot to adjust a number of trims, including ignition timing, fuel, boost, etc. The Universal 12 Position Trim Pot includes: 12 Position Trim Pot with Flying Lead, 2 Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11, Blue/Red/Black AEM Logo Knob Decals & Blue/Red/Black Colored Knob Decals. Click here for more AEM sensors and connectors

Warranty
Installation Instructions
  • Over mold weatherproof body with 12" leads, 1 Red (Supply Voltage 5Vdc +/- .5), 1 Black (Ground), 1 White (Output)
  • 12 Position Trim Pot Performance Specifications
  • Knob Set Screw: 1/16" Allen
  • Total Resistance: 14.3KO
  • Cycles Minimum: 10,000
  • Supply Current: 5 Vdc
  • Degree Rotation: 330
  • Mounting: 3/8" Hole
  • Jam Nut: 1/2" Hex
  • Positions: 12
⌕
