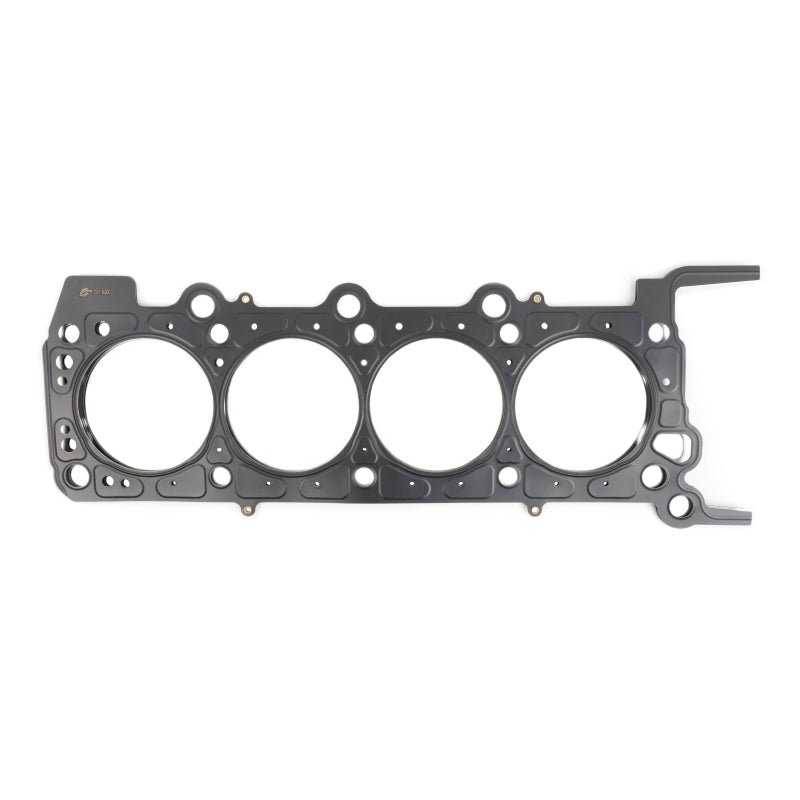

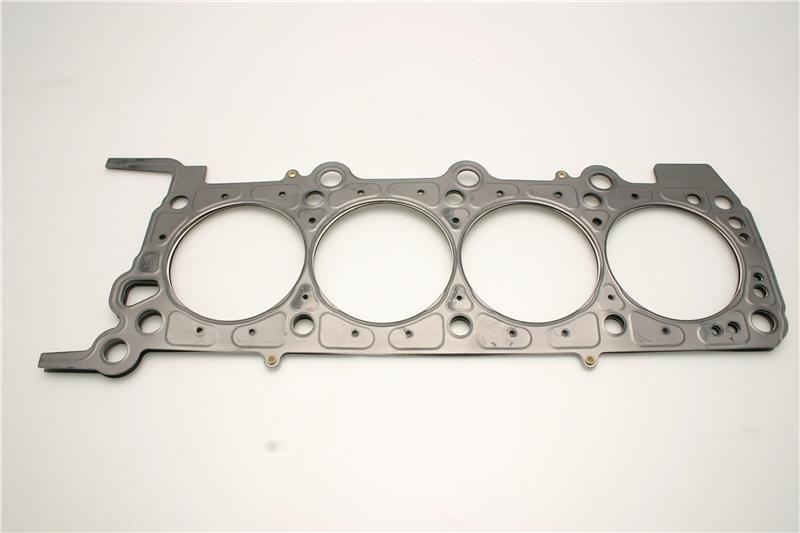

Cometic Ford 4.6L V-8 Left Side 92MM .030 MLS Head Gasket
SKU:
CGSC5118-030
$140.99
Unit price
/
Unavailable
- Make: Universal
Not sure which part you need, or want to make sure it's in stock?
Give us a call. You won't get a robot, you'll get straight through to a real person who knows diesel.
Cometic Ford 4.6L V-8 Left Side 92MM .030 MLS Head Gasket
$140.99
Unit price
/
Unavailable

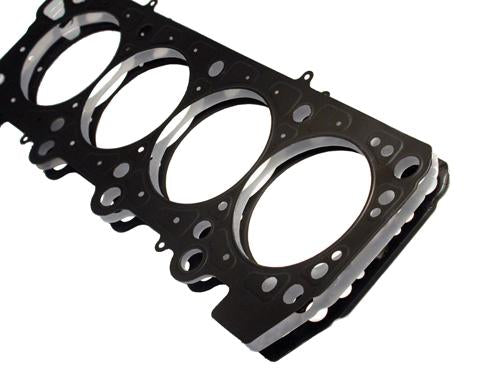

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.030". Left Side. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
- The embossed outer layers of the gaskets meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes
- The center or shim layer is an uncoated stainless steel layer which can be varied to accommodate multiple thickness requirements
- Requires less clamp load creating less bore distortion
- Conforms load distribution across the sealing area
- Embossed Outer Layers Coated w/Viton
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1992-2008,2010-2011 | Ford | Crown Victoria | Base |
| 2006-2009 | Ford | Crown Victoria | Fleet |
| 2002-2009 | Ford | Crown Victoria | LWB |
| 1992-2011 | Ford | Crown Victoria | LX |
| 2004-2006 | Ford | Crown Victoria | LX Sport |
| 1993-2011 | Ford | Crown Victoria | Police Interceptor |
| 1992-2005 | Ford | Crown Victoria | S |
| 2005 | Ford | Crown Victoria | Special Edition |
| 1992 | Ford | Crown Victoria | Touring Sedan |
| 2003-2014 | Ford | E-150 | Base |
| 2006-2007 | Ford | E-150 | Chateau |
| 2006-2014 | Ford | E-150 | XL |
| 2006-2014 | Ford | E-150 | XLT |
| 2003-2005 | Ford | E-150 Club Wagon | Chateau |
| 2003-2005 | Ford | E-150 Club Wagon | XL |
| 2003-2005 | Ford | E-150 Club Wagon | XLT |
| 1997-2002 | Ford | E-150 Econoline | Base |
| 1997-2000 | Ford | E-150 Econoline | XL |
| 1997-2002 | Ford | E-150 Econoline Club Wagon | Chateau |
| 1997-2000 | Ford | E-150 Econoline Club Wagon | Custom |
| 2001-2002 | Ford | E-150 Econoline Club Wagon | XL |
| 1997-2002 | Ford | E-150 Econoline Club Wagon | XLT |
| 2003-2014 | Ford | E-250 | Base |
| 1997-2002 | Ford | E-250 Econoline | Base |
| 1997-2000 | Ford | E-250 Econoline | XL |
| 2003-2005 | Ford | E-350 Club Wagon | Chateau |
| 2003-2005 | Ford | E-350 Club Wagon | XL |
| 2003-2005 | Ford | E-350 Club Wagon | XLT |
| 1997-1998 | Ford | E-350 Econoline | Base |
| 1997-1998 | Ford | E-350 Econoline | XL |
| 1997-2002 | Ford | E-350 Econoline Club Wagon | Chateau |
| 1997-2000 | Ford | E-350 Econoline Club Wagon | Custom |
| 2001-2002 | Ford | E-350 Econoline Club Wagon | XL |
| 1997-1998 | Ford | E-350 Econoline Club Wagon | XL HD |
| 1997-2002 | Ford | E-350 Econoline Club Wagon | XLT |
| 1997-1998 | Ford | E-350 Econoline Club Wagon | XLT HD |
| 1999-2016 | Ford | E-350 Super Duty | Base |
| 2006 | Ford | E-350 Super Duty | Chateau |
| 1999-2000,2006-2014 | Ford | E-350 Super Duty | XL |
| 2006-2014 | Ford | E-350 Super Duty | XLT |
| 2003-2005 | Ford | Excursion | Eddie Bauer |
| 2000-2005 | Ford | Excursion | Limited |
| 2004-2005 | Ford | Excursion | XLS |
| 2000-2005 | Ford | Excursion | XLT |
| 1997-2004 | Ford | Expedition | Eddie Bauer |
| 2007-2008 | Ford | Expedition | EL Eddie Bauer |
| 2008 | Ford | Expedition | Funkmaster Flex Edition |
| 2004 | Ford | Expedition | NBX |
| 2004 | Ford | Expedition | XLS |
| 1997-2004 | Ford | Expedition | XLT |
| 2004 | Ford | Expedition | XLT Sport |
| 2002-2005 | Ford | Explorer | Eddie Bauer |
| 2002-2008 | Ford | Explorer | Limited |
| 2004 | Ford | Explorer | NBX |
| 2002-2005 | Ford | Explorer | XLT |
| 2004-2005 | Ford | Explorer | XLT Sport |
| 2007-2008 | Ford | Explorer Sport Trac | Limited |
| 1997-2000 | Ford | F-150 | Base |
| 2007-2008,2010 | Ford | F-150 | FX2 |
| 2004-2008 | Ford | F-150 | FX4 |
| 2000-2003,2006-2008 | Ford | F-150 | Harley-Davidson Edition |
| 2001-2003,2005-2008 | Ford | F-150 | King Ranch |
| 1997-2008 | Ford | F-150 | Lariat |
| 1999-2003 | Ford | F-150 | Lightning |
| 2008 | Ford | F-150 | Limited |
| 2004-2010 | Ford | F-150 | STX |
| 2008 | Ford | F-150 | THE 60TH ANNIVERSARY EDITION |
| 1997-2010 | Ford | F-150 | XL |
| 1997-2010 | Ford | F-150 | XLT |
| 2004 | Ford | F-150 Heritage | SVT Lightning |
| 2004 | Ford | F-150 Heritage | XL |
| 2004 | Ford | F-150 Heritage | XLT |
| 1997-1999 | Ford | F-250 | Base |
| 1997-1999 | Ford | F-250 | Lariat |
| 1997-1999 | Ford | F-250 | XL |
| 1997-1999 | Ford | F-250 | XLT |
| 2004 | Ford | F-250 Super Duty | King Ranch |
| 1999-2008 | Ford | F-250 Super Duty | Lariat |
| 1999-2004 | Ford | F-250 Super Duty | XL |
| 1999-2008 | Ford | F-250 Super Duty | XLT |
| 2003-2004 | Ford | F-350 Super Duty | King Ranch |
| 1999-2008 | Ford | F-350 Super Duty | Lariat |
| 1999-2008 | Ford | F-350 Super Duty | XL |
| 1999-2008 | Ford | F-350 Super Duty | XLT |
| 1996-2004 | Ford | Mustang | GT |
| 2001 | Ford | Mustang | GT Bullitt |
| 1994-1997 | Ford | Thunderbird | LX |
| 1995 | Lincoln | Continental | Signature |
| 1998-1999 | Lincoln | Navigator | Base |
| 1996 | Lincoln | Town Car | Anniversary |
| 1991-1999 | Lincoln | Town Car | Base |
| 1991-2003 | Lincoln | Town Car | Cartier |
| 2001-2003 | Lincoln | Town Car | Cartier L |
| 1991-1995 | Lincoln | Town Car | Cypress |
| 2006-2007 | Lincoln | Town Car | Designer Series |
| 1991-2010 | Lincoln | Town Car | Executive |
| 2001-2011 | Lincoln | Town Car | Executive L |
| 2003 | Lincoln | Town Car | Executive Protection Series |
| 1993 | Lincoln | Town Car | Jack Nicklaus |
| 2004-2006 | Lincoln | Town Car | Protection Series |
| 1991-2007 | Lincoln | Town Car | Signature |
| 2005-2011 | Lincoln | Town Car | Signature L |
| 2005-2011 | Lincoln | Town Car | Signature Limited |
| 1991-1995,1997 | Lincoln | Town Car | Touring Edition |
| 1994 | Lincoln | Town Car | Tournament Edition |
| 2004 | Lincoln | Town Car | Ultimate |
| 2004 | Lincoln | Town Car | Ultimate L |
| 1994-1997 | Mercury | Cougar | XR-7 |
| 1992-2008 | Mercury | Grand Marquis | GS |
| 2005 | Mercury | Grand Marquis | GSL |
| 2005 | Mercury | Grand Marquis | Limited Edition |
| 1992-2011 | Mercury | Grand Marquis | LS |
| 2003 | Mercury | Grand Marquis | LSE |
| 2005 | Mercury | Grand Marquis | Ultimate Edition |
| 2002-2004 | Mercury | Mountaineer | Base |
| 2005 | Mercury | Mountaineer | Convenience |
| 2005 | Mercury | Mountaineer | Luxury |
| 2004-2005 | Mercury | Mountaineer | Premier |
| 2014-2015 | Mobility Ventures | MV-1 | DX |
| 2014-2015 | Mobility Ventures | MV-1 | LX |
| 2015 | Mobility Ventures | MV-1 | SE |
| 2011-2012 | VPG | MV-1 | Base |
| 2011-2012 | VPG | MV-1 | Deluxe |
