Cometic Gasket

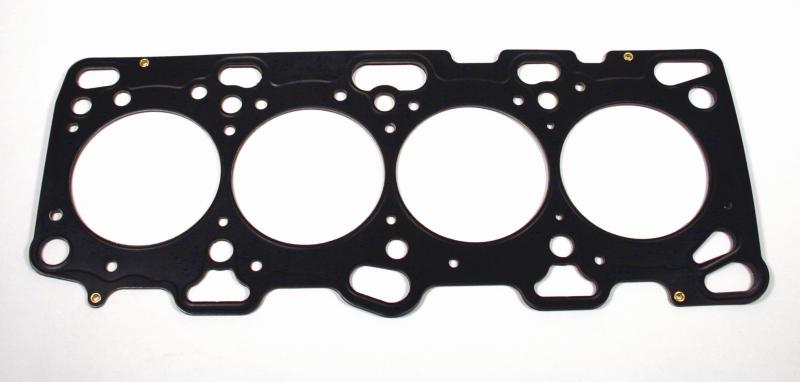

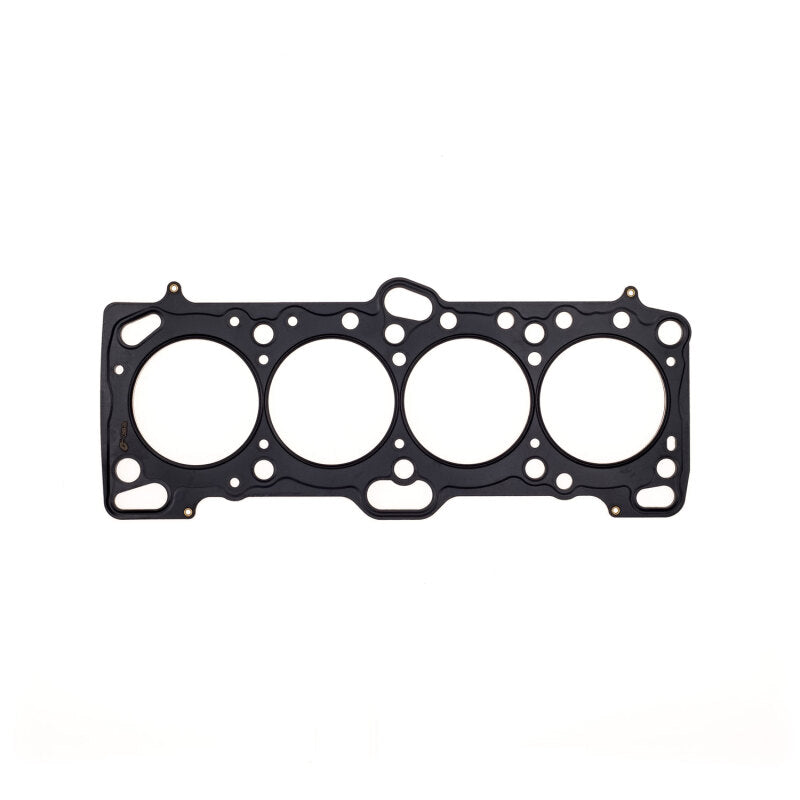

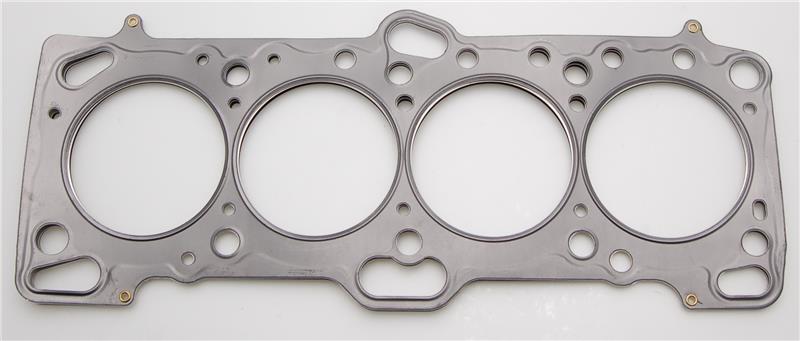

Cometic Mitsubishi 4G63/T 85.5mm .075 inch MLS Head Gasket Eclipse / Galant/ Lancer Thru EVO3

SKU: CGSC4233-075
$130.99

Not sure which part you need, or want to make sure it's in stock?

Give us a call. You won't get a robot, you'll get straight through to a real person who knows diesel.

📱 Call Us

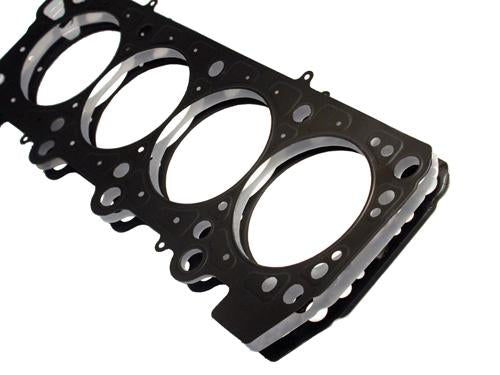

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.075". EVO 1-3. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

  • The embossed outer layers of the gaskets meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes
  • The center or shim layer is an uncoated stainless steel layer which can be varied to accommodate multiple thickness requirements
  • Requires less clamp load creating less bore distortion
  • Conforms load distribution across the sealing area
  • Embossed Outer Layers Coated w/Viton

This Part Fits:

Year Make Model Submodel
1989-1990 Dodge Colt Vista
1990-1992,1996-1998 Eagle Talon Base
1993-1994 Eagle Talon ES
1995-1998 Eagle Talon ESi
1990-1998 Eagle Talon TSi
1990-1992,1996-1997 Mitsubishi Eclipse Base
1990-1999 Mitsubishi Eclipse GS
1990-1999 Mitsubishi Eclipse GST
1990-1999 Mitsubishi Eclipse GSX
1995-1999 Mitsubishi Eclipse RS
1996-1999 Mitsubishi Eclipse Spyder GST
1989-1992 Mitsubishi Galant Base
1989-1992 Mitsubishi Galant GS
1991-1992 Mitsubishi Galant GSR
1990-1992 Mitsubishi Galant GSX
1989-1992 Mitsubishi Galant LS
1991-1992 Mitsubishi Galant VR-4
2003-2006 Mitsubishi Lancer Evolution
2005-2006 Mitsubishi Lancer Evolution MR
2005-2006 Mitsubishi Lancer Evolution RS
2006 Mitsubishi Lancer Evolution SE
1989-1990 Plymouth Colt Vista
1990-1994 Plymouth Laser RS
