DEI DEI Floor and Tunnel Shield II 21in x 2ft - 3.5 sq ft

SKU: DEI50501
$45.99
  • Make: Universal

Not sure which part you need, or want to make sure it's in stock?

Give us a call. You won't get a robot, you'll get straight through to a real person who knows diesel.

📱 Call Us

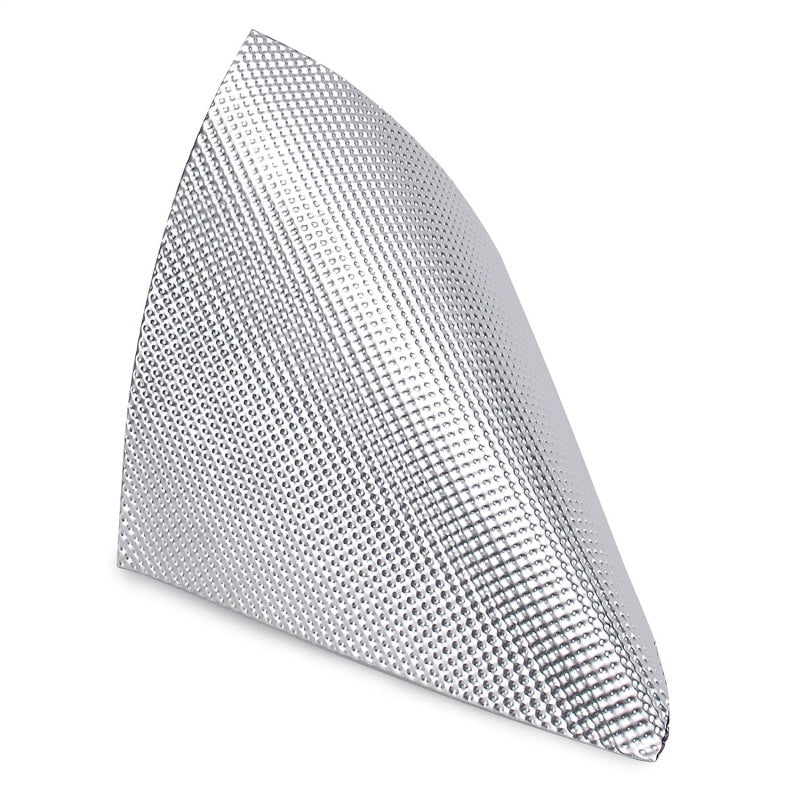

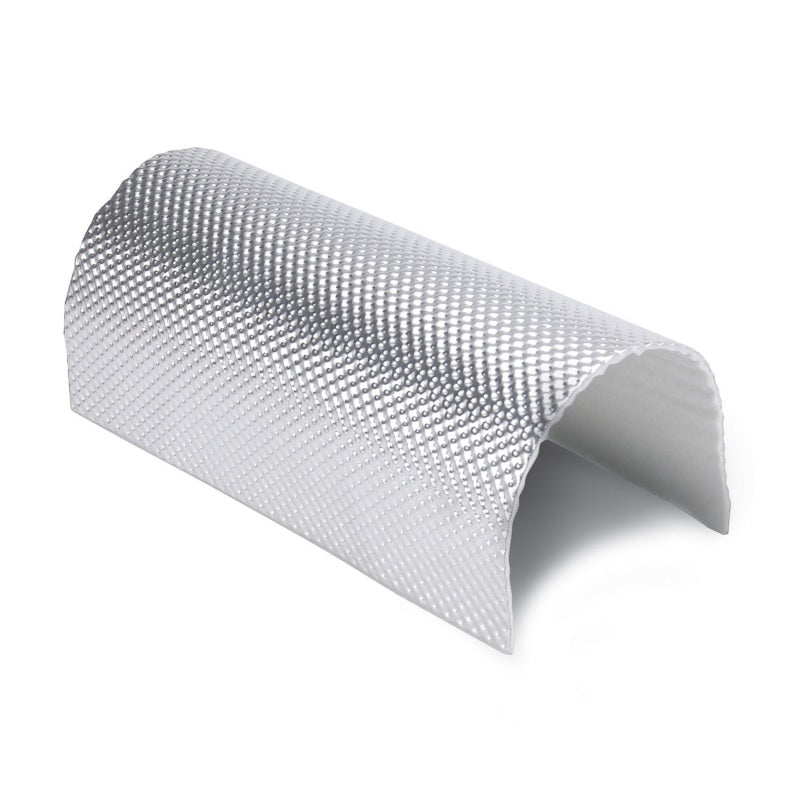

Floor & Tunnel Shield II(TM) solves the problem of needing a high heat barrier to block heat from any source intruding into interiors and damaging components and electronics. Use as a barrier to reflect and insulate from any heat source. Designed to provide the best possible heat protection in areas where high temperatures are always present and problematic, Floor annd Tunnel Shield II limits heat transfer on fire walls, transmission tunnels, floor boards, fuel cells and other areas where heat is an issue. Floor & Tunnel Shield II provides excellent light weight thermal protection, acts as a guard against track and road debris, and provides sound deadening as well. Constructed with an embossed 10 mil aluminum face bonded to 1/8 in. composite glass-fiber core and backed with a high temp super strong pressure sensitive backing, Floor and Tunnel Shield II withstands up to 1750F. The adhesive side holds past 450F. Its improved multifaceted modern aluminum surface offers improved reflection and rigidity and allows for ease of installation - aluminum side must face the heat source. At only 3/16 in. thick, this product can be shaped and trimmed for a custom fit and is ideal for minimal clearance areas. With a unique and patented finely woven glass-fiber backing, Floor and Tunnel Shield II is the easiest, most cost effective way to control thermal transfer while protecting expensive components and vehicle occupants from extreme heat situations and sound. Floor and Tunnel Shield II can be used on any number of surfaces including, metal, aluminum, carbon fiber, plastic, and more. 10 mil dimpled aluminum face Protection for engine compartments Protection for painted body parts Comfortable interior at any temperature Hi-temp adhesive for a do-it-once install Extreme heat barrier - aluminum side should face the heat Only 3/16 in. thick Use as barrier to reflect and insulate from any heat source Great for exterior applications DO NOT apply directly to exhaust components.

Installation Instructions
Installation Instructions
  • Ideal For Firewalls/Under Vehicle/Floor Pans/Oil Tank Box/etc.
  • Serves As A Barrier To Unwanted Road/Tire And Engine Noise
  • Aggressive Self-Adhesive Backing Holds Past 450 Degrees F
  • Withstands Direct High Temperatures Up To 1750 Degrees
  • Blocks Radiant Heat From Entering Driver Compartment
  • Adheres To Almost Any Surface/Material/Fiberglass
  • Minimum Clearance Required Only 3/16 in. Thick
  • Easy To Form To Shapes And Contours
  • Constructed From 10 Mil Aluminum
  • Peel and stick adhesive backing
  • Just Trim Peel And Stick
