Fleece Performance 13-18 RAM 2500/3500 6.7L Cummins Coolant Bypass Kit

SKU: FPEFPE-CLNTBYPS-CUMMINS-1318
$426.99

Not sure which part you need, or want to make sure it's in stock?

Give us a call. You won't get a robot, you'll get straight through to a real person who knows diesel.

📱 Call Us

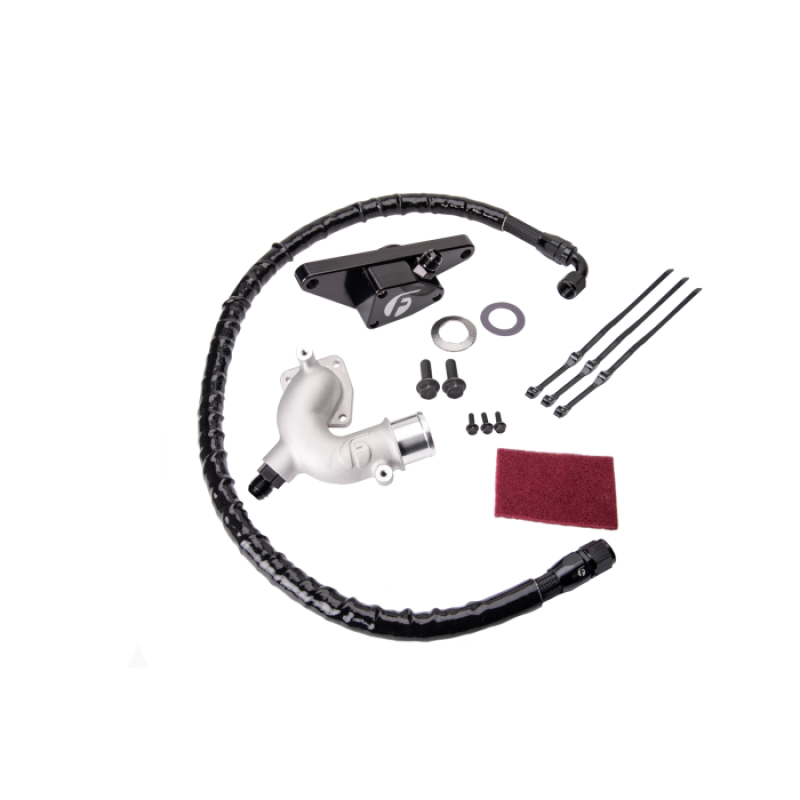

The Fleece Performance coolant bypass for the 2013-2018 RAM with 6.7L Cummins seamlessly integrates with your truck for an OE fit-and-finish. Features Increased Coolant Flow, Decreased Coolant Temperatures The rear cylinders on the 6.7L Cummins suffer from a lack of coolant flow, and therefore, experience the highest coolant temperatures. This can cause excessive pressure to build in the cooling system, especially the rear of the block and blow out freeze plugs externally, or the smaller diameter plugs under the valve cover, leading to a failure. Our coolant bypass kit adds a secondary thermostat, that unlike other brands, works based on temperature instead of excessive pressure. This solves the problem before pressure becomes an issue by ensuring consistent temperatures across all six cylinders. Benefits Lowers coolant temperature at the rear cylinders Ensures consistent temperatures across all cylinders Prevents damaging coolant pressure build up Complete kit comes with braided hose and AN O-ring fittings to ensure a leak-free installation. Why do I need aFleece Coolant Bypass? One of the biggest issues on the 6.7L Cummins is the coolant flow problem to the rear cylinders. This can cause catastrophic failure or blow outs of the freeze plugs in an over-temperature / over-pressure condition. The Fleece Coolant Bypass is one of the most important additions you make to improve the reliability and longevity of the Cummins platform. Kit Includes: Rear coolant bypass thermostat housing Front coolant bypass thermostat housing New EGR cross-over tube gaskets Black braided nylon coolant bypass hose with protective high temperature sleeve and AN fittings Mounting hardware

Installation Instructions
Datasheet
Warranty
  • Complete kit comes with braided hose and AN O-ring fittings to ensure a leak-free installation
  • Ensures consistent temperatures across all cylinders
  • Lowers coolant temperature at the rear cylinders
  • Prevents damaging coolant pressure build up

This Part Fits:

Year Make Model Submodel
2013-2018 Ram 2500 Big Horn
2013-2018 Ram 2500 Laramie
2014-2015 Ram 2500 Laramie Limited
2013-2018 Ram 2500 Laramie Longhorn
2016-2018 Ram 2500 Limited
2013-2015 Ram 2500 Lone Star
2013-2016 Ram 2500 Outdoorsman
2013-2018 Ram 2500 SLT
2013 Ram 2500 ST
2013-2018 Ram 2500 Tradesman
2013-2018 Ram 3500 Big Horn
2013-2018 Ram 3500 Laramie
2014-2015 Ram 3500 Laramie Limited
2013-2018 Ram 3500 Laramie Longhorn
2016-2018 Ram 3500 Limited
2013-2015,2017 Ram 3500 Lone Star
2013-2018 Ram 3500 SLT
2013 Ram 3500 ST
2013-2018 Ram 3500 Tradesman

Customer Reviews

Overall rating: 4.7 / 5 from 529 reviews.

Customer photo review of FSD 03-09 Dodge Cummins Billet Heat Exchanger

The billet heat exchanger looks great and is machined nicely. No worries about an internal failure allowing fluids to mix. It seems to be doing its job. It's more robust than the factory style cooler but I don’t believe it is quite as efficient based on warm up times I’m seeing. My only gripe is the bracket mounting bolts, they thread directly onto the cooler instead of passing all the way through and securing with nuts. Make sure to use thread locker along with the lock washers. As a rough guide, torque for M8 fasteners in aluminum should be 11-15 ft lbs, no torque spec is listed for the mounting hardware in the instructions.

Charles H. 4/5 Verified

FSD 03-09 Dodge Cummins Billet Heat Exchanger

Customer photo review of FSD 2003-2007 Dodge Cummins Heater Hose Kit Black Braided

It’s not bad, I was in a bind and needed a quick fix to get my truck back going. So first things first, the kit works. You can get rid of the steel lines and these will take their place. With about an hour and a half and a little research it doesn’t take much to get these hoses installed. However, I have some gripes about this kit. 1. You have to be very careful about how the lines are run to prevent the hose from kinking. 2. There are no p clamps or hardware included to hold the lines in place. To improve this kit, I’d toss some hose clamps, a couple bolts with some p clamps to hold the hose, maybe a couple pictures on where to run things too, or even total install instructions. Stiffer hose would be good too, in my pictures you can see that the hose going to the front of the engine is trying to kink as it makes the bend to run beside the turbo.

Noah T. 3/5 Verified

FSD 2003-2007 Dodge Cummins Heater Hose Kit Black Braided

Customer photo review of Kingspeed Billet Front Cover 94-02

It came with no gaskets this item deff needs to be sold with cover gasket as well as the seal for the crank even a plug for the vent or a fitting to hook a tube to the vent. Didn’t come with shit but bolts. Now I got to track everything else down seperatly makes it a pain in the ass. At this point I’d rather have stayed stock

Jacob M. 3/5 Verified

Kingspeed Billet Front Cover 94-02

Customer photo review of FSD 2010-2012 Dodge Cummins Factory Replacement Transmission Line Kit Black Braided

I installed them when I built my transmission. Hoses are good quality but fittings felt kind of cheap. Not a bad kit at all. I’d recommend it to anyone. Substantial trans temp difference after putting them on. My trans runs a lot cooler now that I’ve bypassed the heat exchanger. 2012 ram 2500 with 68rfe. 9/10 would recommend. Just be gentle with the fittings

Max F. 4/5 Verified

FSD 2010-2012 Dodge Cummins Factory Replacement Transmission Line Kit Black Braided

Customer photo review of FSD 03-09 Dodge Cummins Elite Drop-In Transmission Cooler Kit

I installed this cooler and a few weeks later got into a wreck that was able to damn near total my truck, the frame is bent in 4 places and it shifted my ranch and bumper a foot. This cooler was the only radiator that survived everything else was destroyed and wrapped around the cooler. I called customer support and was able to order new stainless steel brackets and this cooler will live again. I’m very impressed with the quality and strength of this part and would gladly buy it for another truck.

Fritz G. 5/5

FSD 03-09 Dodge Cummins Elite Drop-In Transmission Cooler Kit

Customer photo review of Kingspeed 06-Current Dodge Ram Billet Budget Builder Valve Cover

I love the product. I am just upset that it wasn’t clear it doesn’t come with any hardware. I currently have no clue what barb fittings and hose sizes I need to get for the valve cover to my catch can. I am currently using a hardware store setup as this is my first Cummins and my first quality build of a truck. If there’s anyway you could assist me or point me in the right direction that would be awesome. Aside from that I’ve had nothing but compliments on it, I actually won top 10 truck and SCT x GFP in Nashville a few weeks back. Everyone including myself love the valve cover.

Caleb H. 3/5 Verified

Kingspeed 06-Current Dodge Ram Billet Budget Builder Valve Cover

⌕
