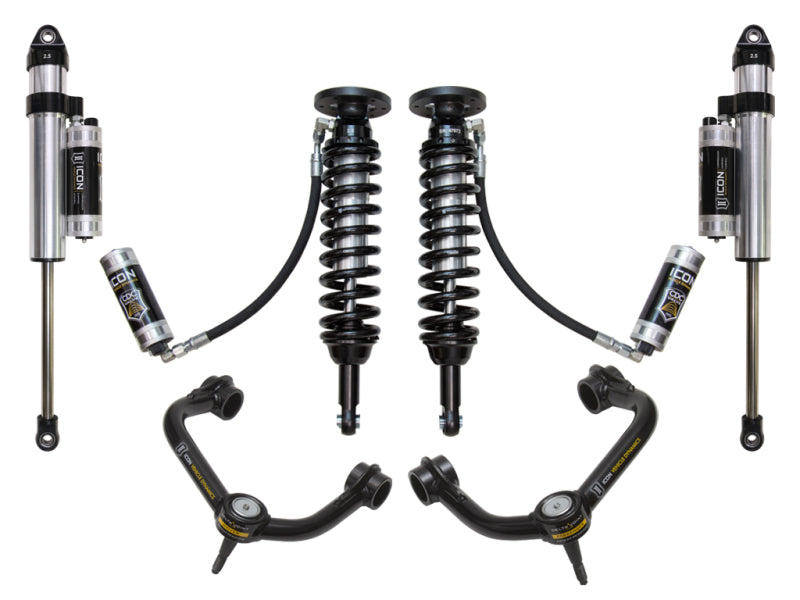

ICON 09-13 Ford F-150 4WD 1.75-2.63in Stage 5 Suspension System w/Tubular Uca

4.7 store rating · 600 reviews
SKU: ICOK93005T

Fits 2009–2013 Ford F-150

All 11 applications
$4,905.99
Only 1 left. Ships in 1–2 business days.Free shipping on orders over $2,000.
  • Authorized dealerGenuine ICON parts, sourced direct
  • 30-day returnsSee the return policy
  • Diesel techs on the line908-223-9744, call or text
  • Secure checkoutAmerican Express Apple Pay Diners ClubDiscoverGoogle Pay Mastercard PayPal

The ICON Vehicle Dynamics 2009-2013 Ford F150 4WD Stage 5 suspension system is the best choice for drivers looking to maximize the on and off-road potential of their trucks and will inspire confidence behind the wheel in nearly any situation. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This system includes vehicle-specific tuned 2.5” coilover shocks featuring a external remote reservoirs w/ CDCV for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1.75-2.63” of lift over stock allowing the use of larger, more aggressive wheel and tire combinations. Tubular upper control arms on the F150 not only add strength and durability, but help retain factory alignment spec range increasing caster over stock. ICON 2.5 Aluminum Series Piggyback rear shocks w/ CDCV utilize a vehicle-specific valving that balances the performance of the truck from front to rear. 2.5" CDC reservoir front and rear shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's CDC Valve upgrade is included in this stage front and rear for those desiring an easy way to tune the ride externally with 10 settings from soft to hard.

Installation Instructions
Installation Instructions
Installation Instructions
  • 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • Tubular upper control arms for added strength, durability, and improved alignment geometry
  • ICON CDCV equipped shocks front and rear for full compression tuneability of your shocks
  • Vehicle specific tuned front and rear shocks for superior damping and vehicle control
  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • FK Rod End bearings for extended longevity and minimal deflection
  • Bolt-on system - No cutting or welding necessary for install
  • 6061 aircraft grade aluminum CNC machined components
  • Adjustable coilovers from 1.75-2.63" of lift height
