ORACLE Lighting

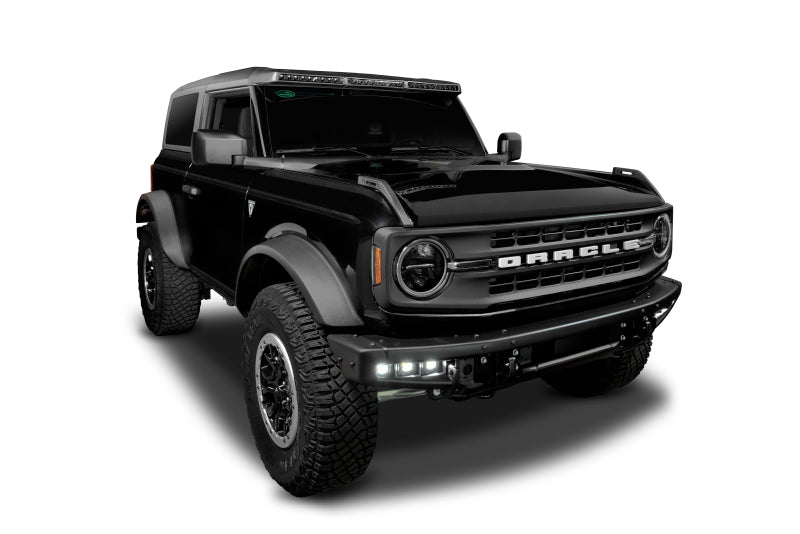

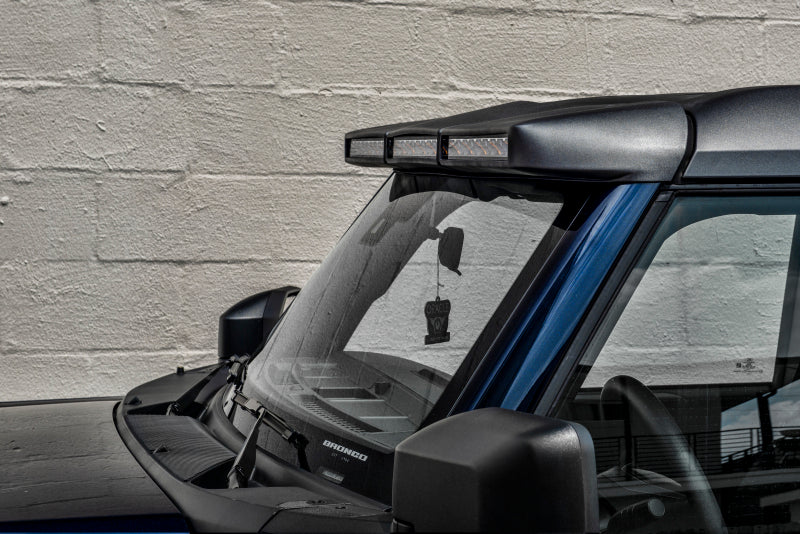

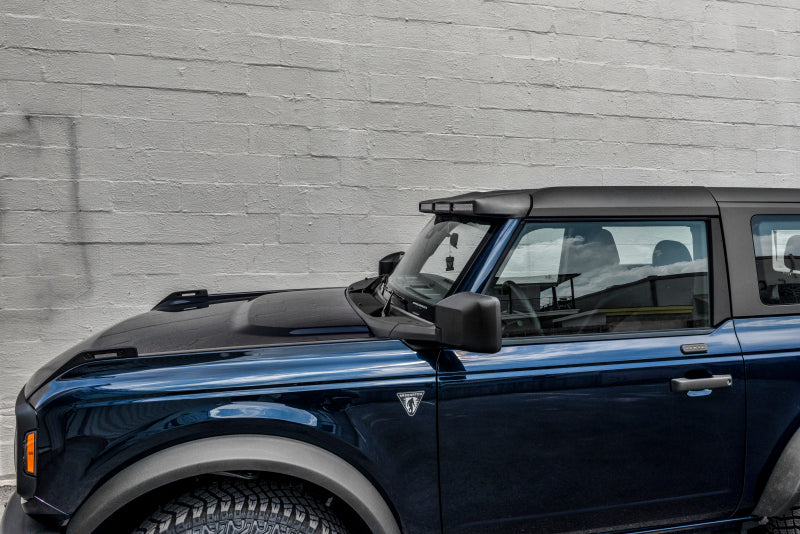

Oracle 2021+ Ford Bronco Integrated Windshield Roof LED Light Bar System

SKU: ORL5888-023
$1,306.99

Not sure which part you need, or want to make sure it's in stock?

Give us a call. You won't get a robot, you'll get straight through to a real person who knows diesel.

📱 Call Us
195900 Entries150X
This purchase enters you to win the FSD26 truck: a 2024 F-350 Limited + $20,000 cash. Ends October 18. See the truck

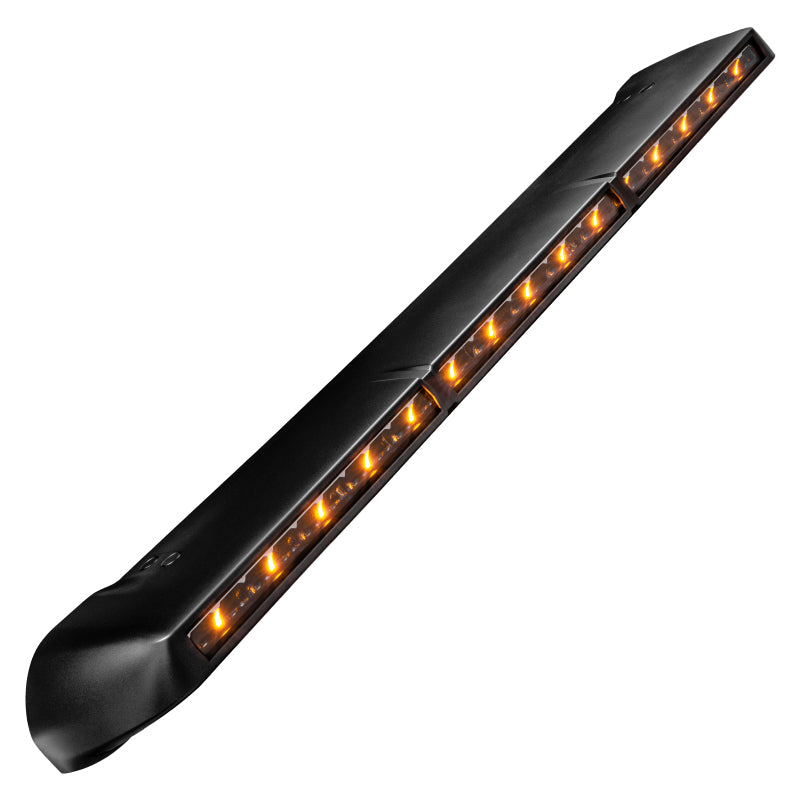

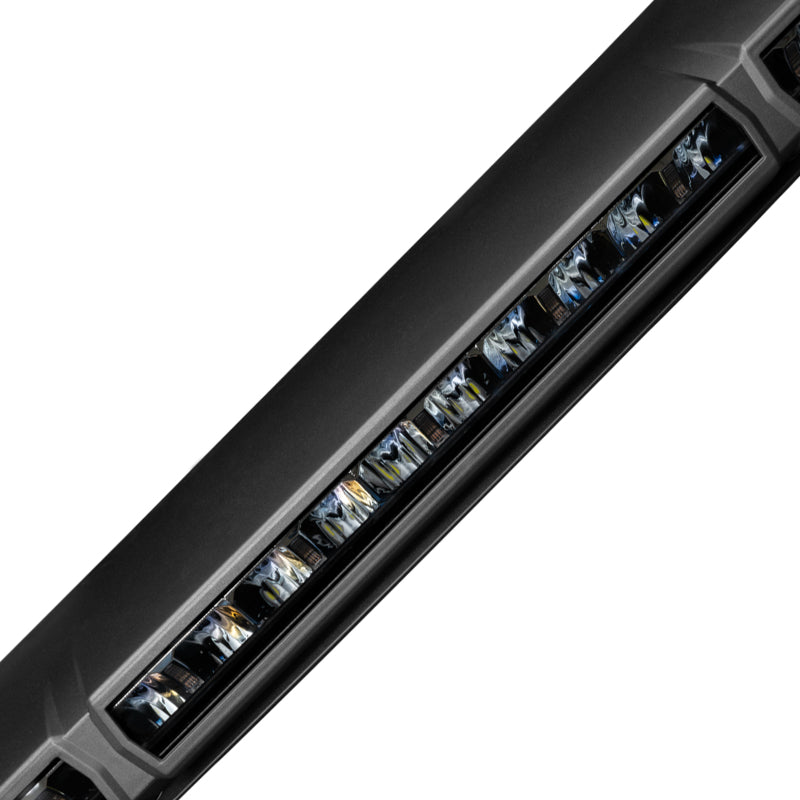

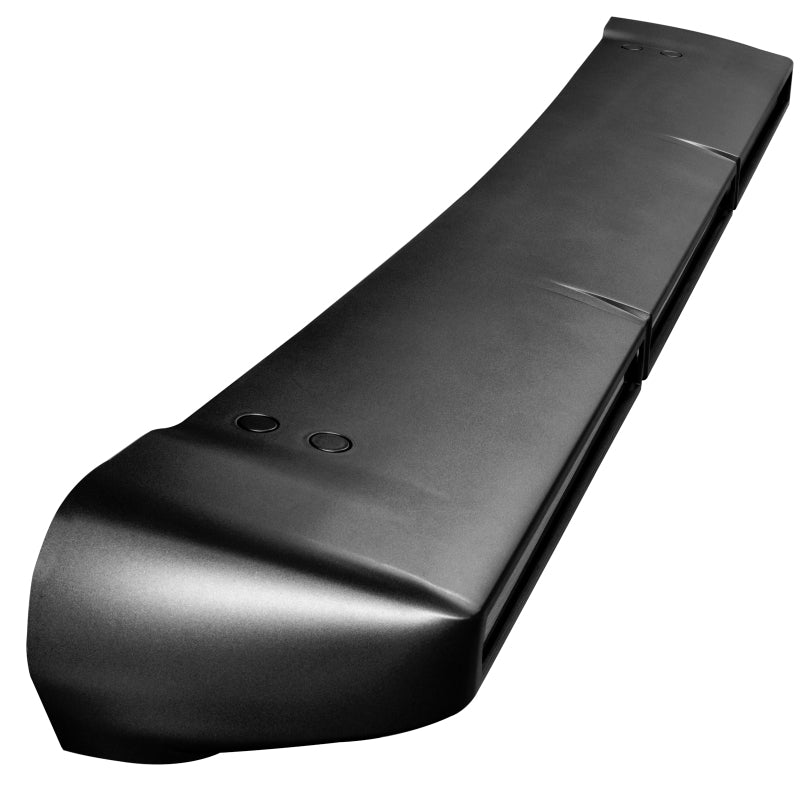

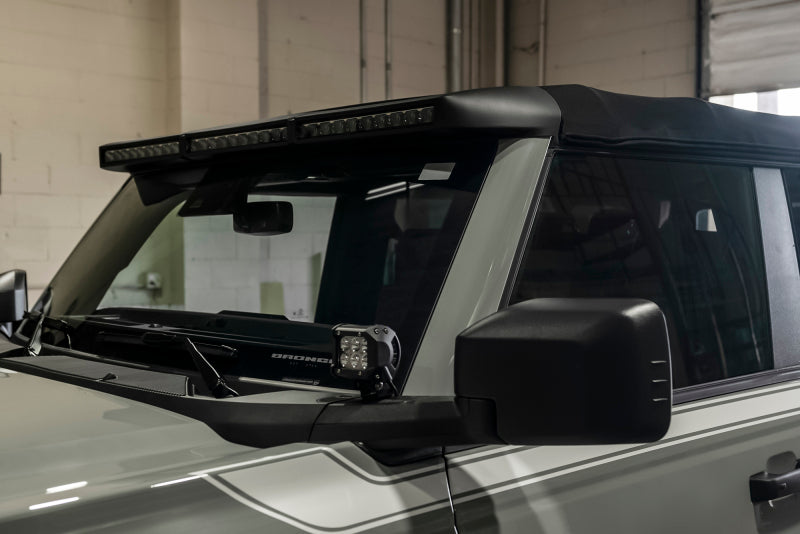

is easy using the factory hardware and only needing the tools included in your glovebox. The ORACLE Light Bar System mounts to your late model Bronco using the factory accessory mounting points and factory hardware for an easy, DIY installation experience! In addition to the color options offered the housing can also be painted to match the color your truck came with from the factory. We recommend using a professional painter to properly prep, prime, and color match paint the housing. The Ford Bronco Integrated LED Light Bar utilizes reflector facing LED technology, elevating it above basic and more common light bars. This reflector system is designed to provide optimized LED light output from the 30 individual 8W LED emitters creating at total of 18,000 raw lumens and a projection distance of over 600 meters. This system also features selectable Amber or White clearance lights. You can select to connect these lights to an Aux Switch, Parking Lights, DRL, or simply leave them disconnected if you prefer not to use the additional clearance light feature on your Bronco.

Installation Instructions

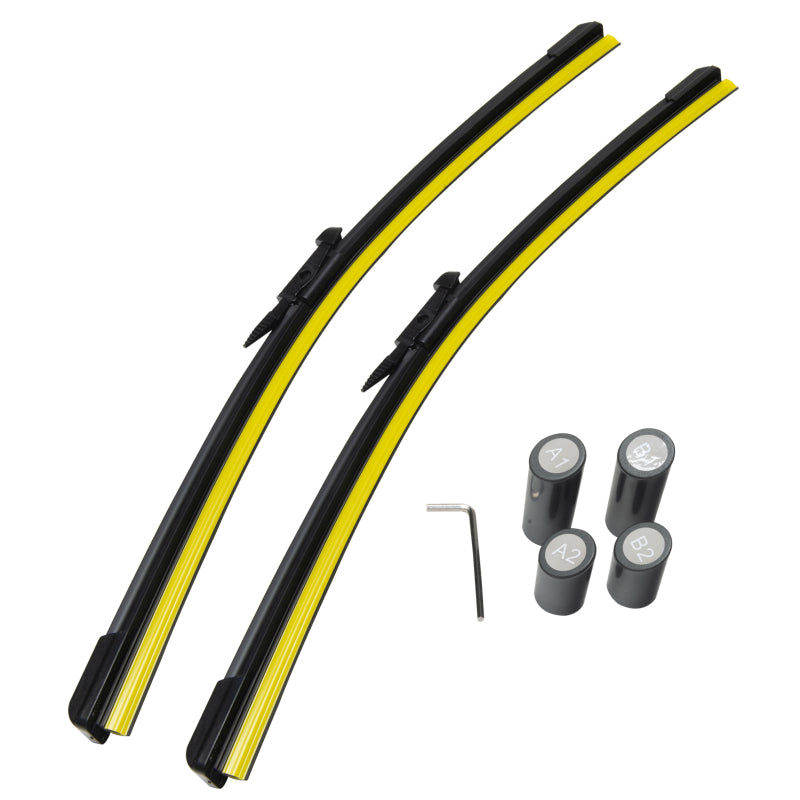

  • Included: (1) Integrated Windshield Roof LED Light Bar System for 2021+ Ford Bronco (4) Accessory Bolt Covers (2) 15" Wiper Blades for Clearance (6) Steel Truss Plates and Installation Hardware
  • If you do not have Aux Switches, we recommend adding our wiring harness PN 5897-504. If you do have Aux Switches, we recommend adding our wiring harness PN 5899-504.
  • DIY Install- No Fabrication/ Modification Required
  • Under/Over Voltage and Reverse Polarity Protection
  • Advanced Optic Design for Optimal Visibility
  • High-Powered Lighting 30x 8W LED Main Light

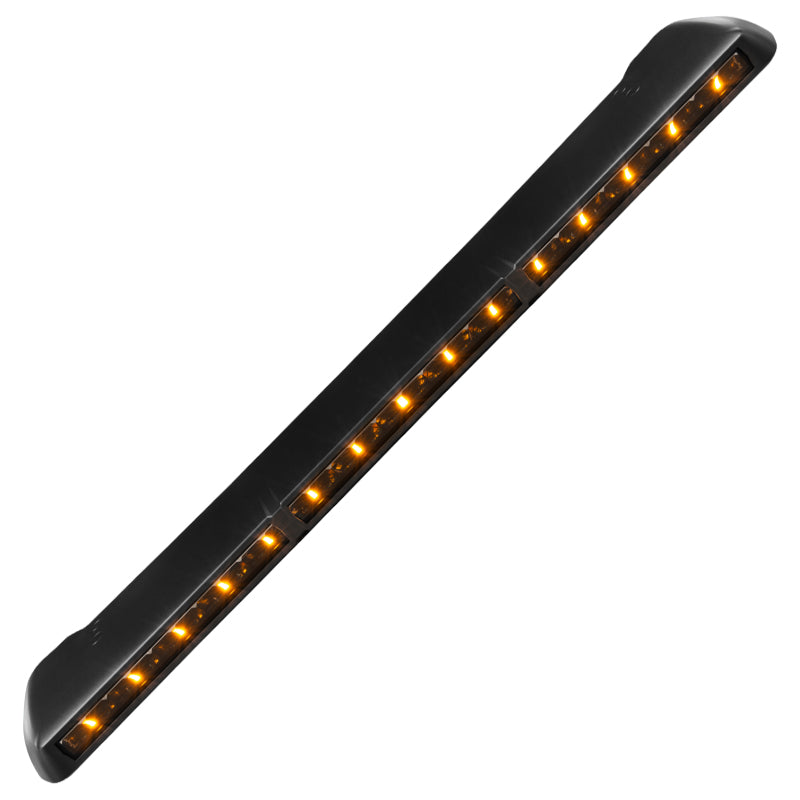

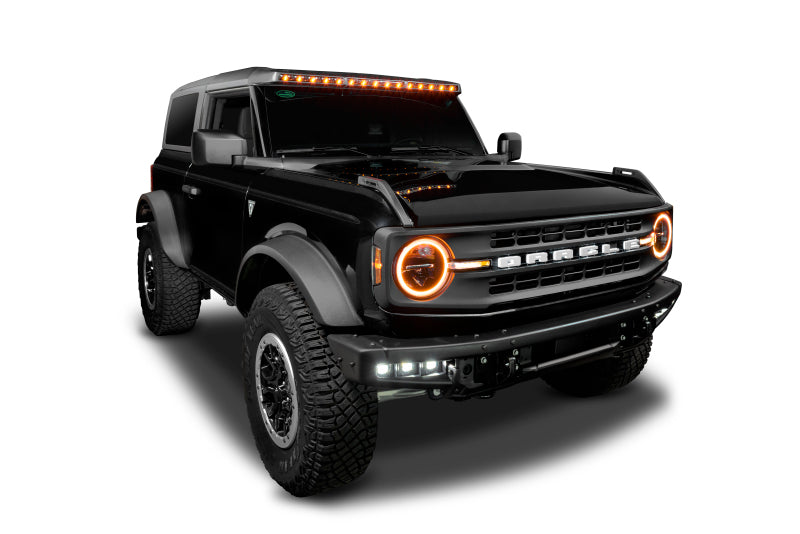

  • Selectable Amber or White Clearance Lights

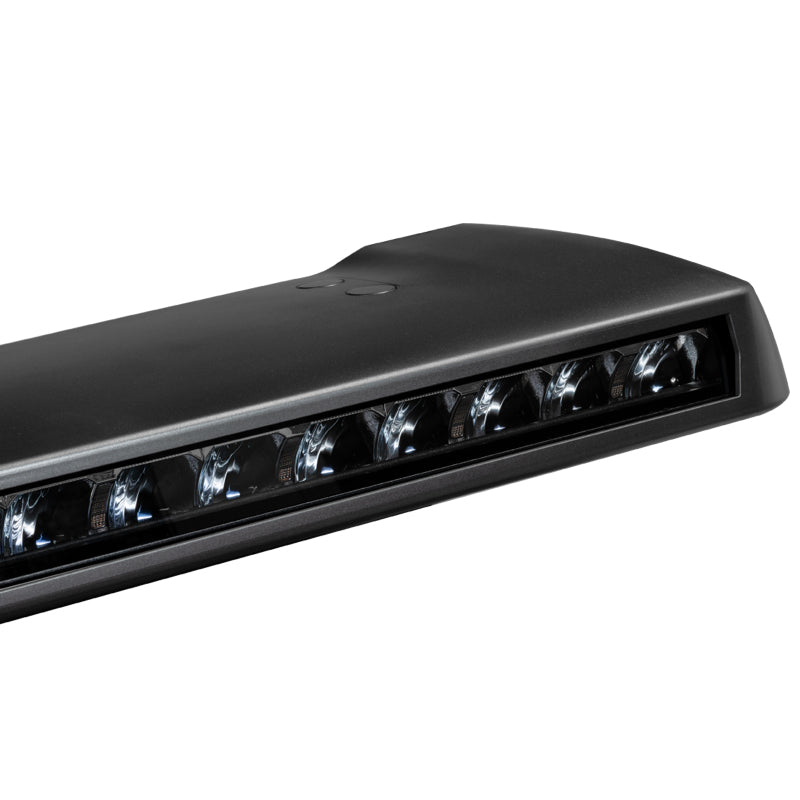

  • Precision LED Reflector-Facing Technology
  • Effective Lumen Light Output: 14,200LM

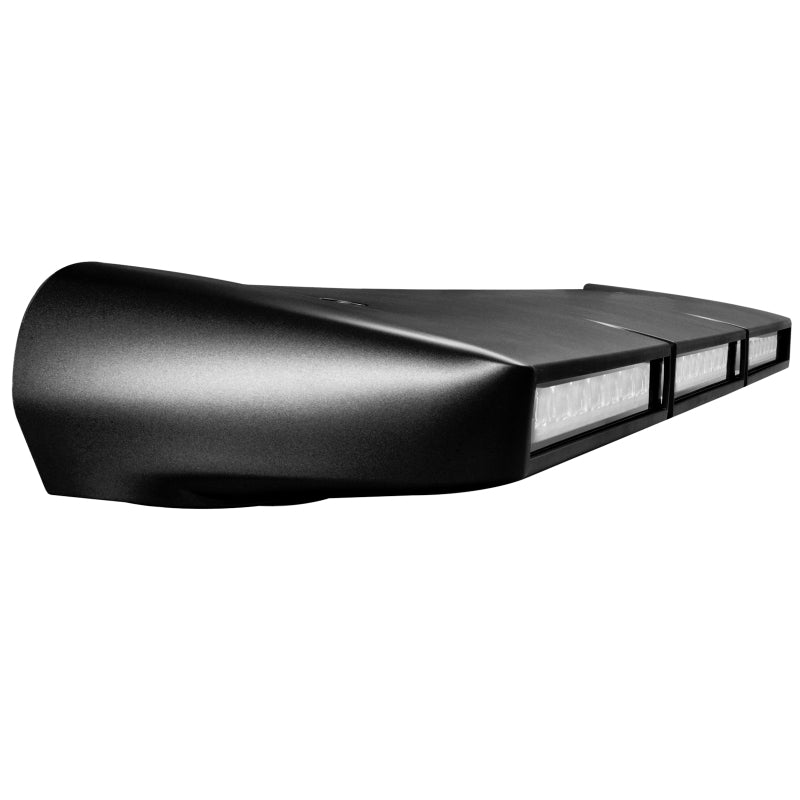

  • Aerodynamic Integrated Housing Design
  • Designed and Engineered in the USA
  • Max Projection Distance: 1Lux@648M
  • Innovative Patent-Pending Design
  • Raw Lumen Light Output: 18,000LM
  • Color Temperature: 5500K-6000K
  • Mounts using Factory Hardware
  • Electronic Thermal Management
  • Beam Angle: 40° Driving Beam
  • Total Amp Draw: 14A @12V DC
  • LED Lifespan 50,000+ Hours
  • Peak Intensity: 420,000CD
  • Total Wattage: 240 Watts
  • 1 Year Warranty

This Part Fits:

Year Make Model Submodel
2021-2024 Ford Bronco Badlands
2021-2023 Ford Bronco Base
2021-2024 Ford Bronco Big Bend
2021-2024 Ford Bronco Black Diamond
2022-2024 Ford Bronco Everglades
2021 Ford Bronco First Edition
2023-2024 Ford Bronco Heritage Edition
2023-2024 Ford Bronco Heritage Limited Edition
2021-2024 Ford Bronco Outer Banks
2021-2024 Ford Bronco Wildtrak
