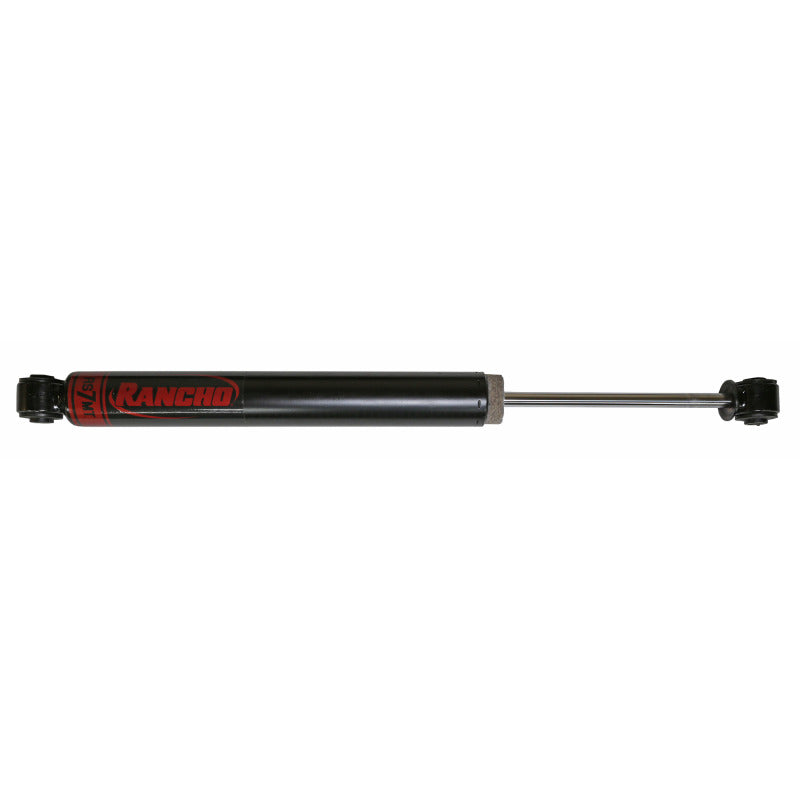

Application tuned for precision on-road and off-road handling, Rancho® RS7MT® monotube shocks are highly effective in the dissipation of heat, making them ideal for extreme off-road use and larger wheel and tire packages. RS7MT shocks feature an integrated dirt wiper sealing system that keeps dirt and debris out, hardened piston rod that resists scuffs and corrosion plus an internal rebound bumper to smooth out your ride on any terrain.

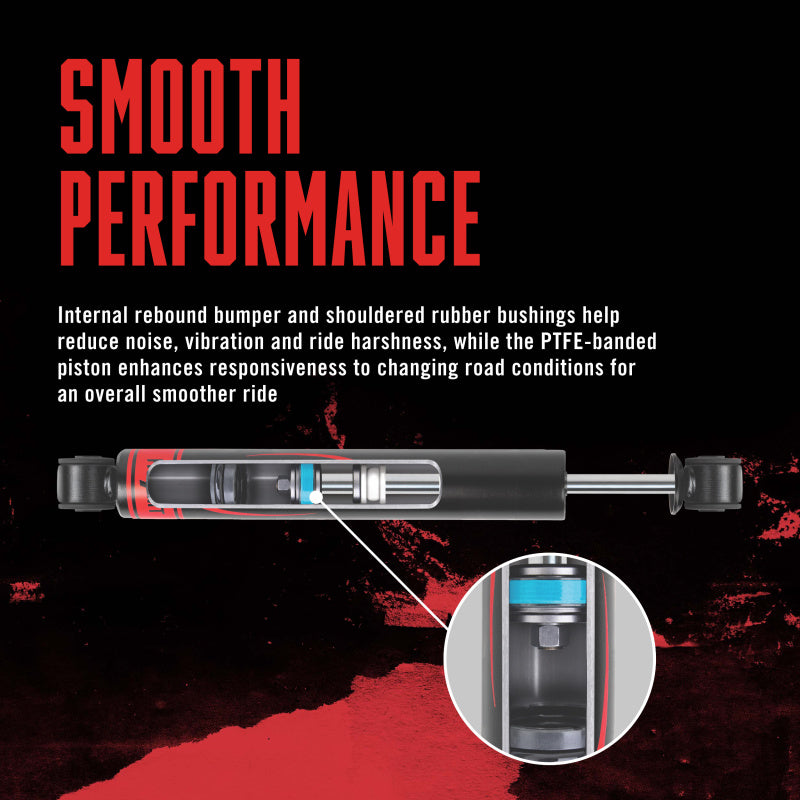

SMOOTH PERFORMANCE -- Internal rebound bumper and shouldered rubber bushings help reduce noise, vibration and ride harshness while the PTFE-banded piston enhances responsiveness to changing road conditions for an overall smoother ride

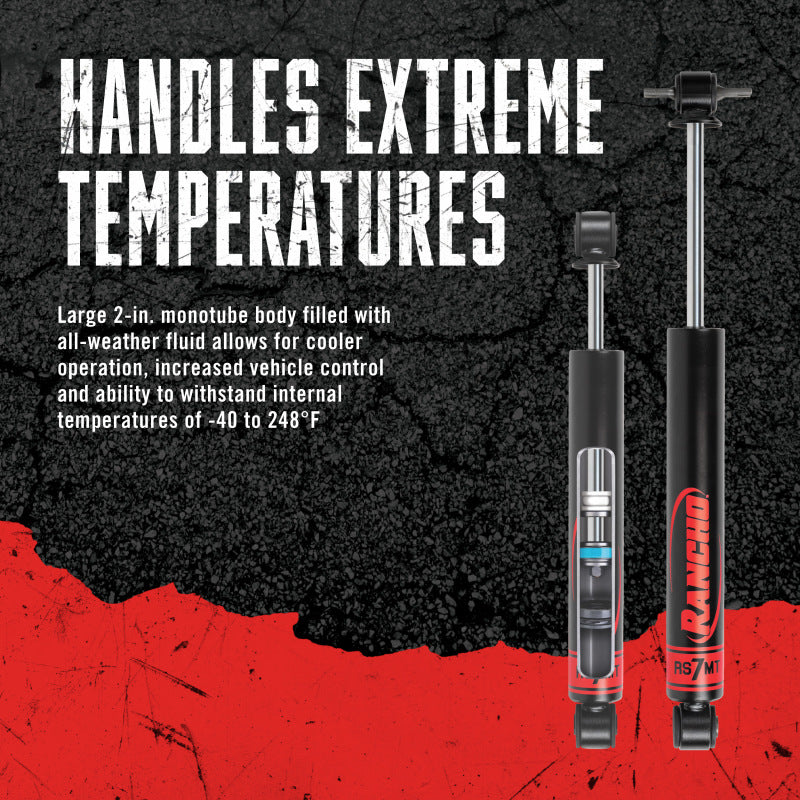

HANDLES EXTREME TEMPERATURE CHANGES -- Large 2-in. monotube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
KEEPS DIRT AND DEBRIS OUT -- Sealing system with integrated dirt wiper helps keep moisture, dirt and debris from being ingested into the shock and contaminating the oil and destroying the internal seal
BUILT TO LAST -- Large 46mm fluon-banded piston for consistent sealing between the piston and monotube for precise control, ride and handling; for extra protection, purchase shock boot RS1952 or RS1961

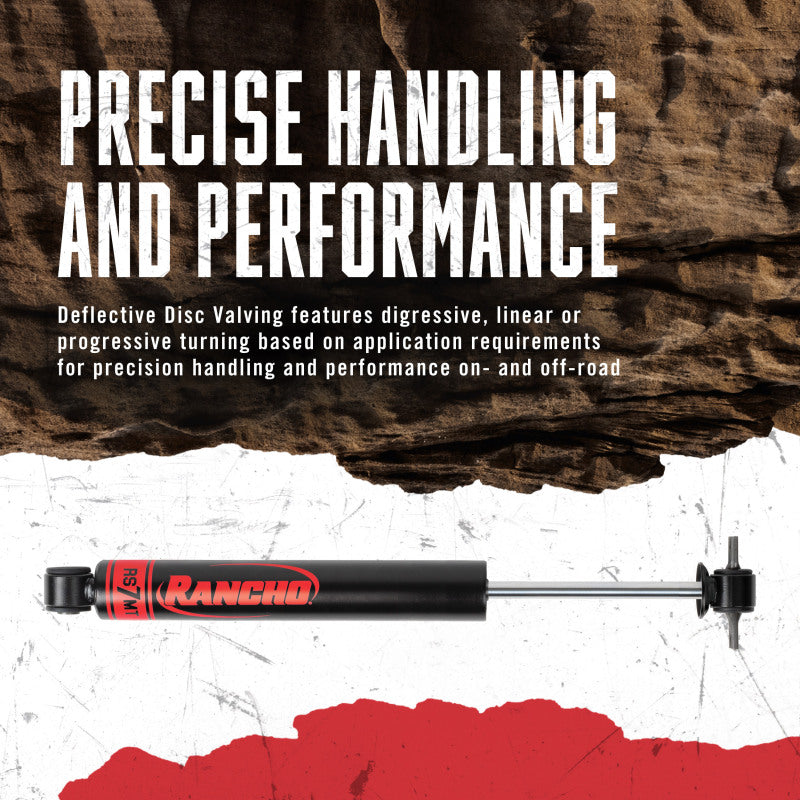

PRECISE HANDLING AND PERFORMANCE -- Deflective Disc Valving features digressive, linear or progressive tuning based on application requirements for precision handling and performance on- and off-road

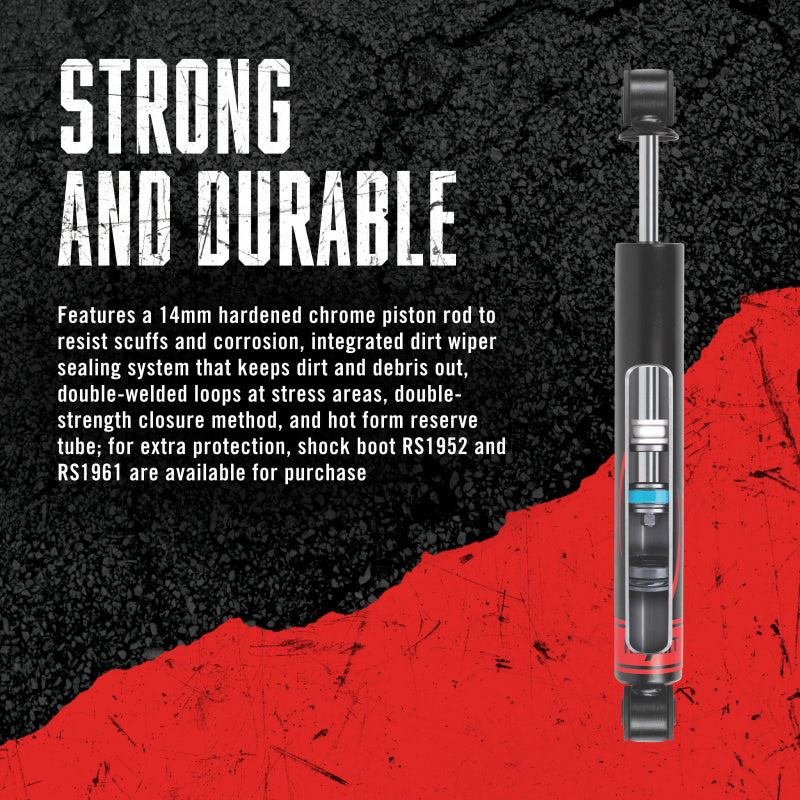

STRONG AND DURABLE -- Features a 14mm hardened chrome piston rod to resist scuffs & corrosion, double-welded loops at stress areas, double strength closure method and hot form reserve tube
REDUCES FADE -- Full-floating dividing piston and high-pressure nitrogen gas maintains constant pressure against the hydraulic oil, reducing aeration and shock fade
THE RIGHT FIT -- Designed to fit right out of the box, application-specific mounting installs easily with no need for installing sleeves or extra hardware
BOLD APPEARANCE -- Black satin finish with distinctive Rancho red logo for an eye-catching look that stands out
BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
This Part Fits:
Year
Make
Model
Submodel
2013
Chevrolet
Avalanche
Black Diamond LS
2013
Chevrolet
Avalanche
Black Diamond LT
2013
Chevrolet
Avalanche
Black Diamond LTZ
2007-2012
Chevrolet
Avalanche
LS
2007-2012
Chevrolet
Avalanche
LT
2007-2012
Chevrolet
Avalanche
LTZ
2002-2005
Chevrolet
Avalanche 1500
Base
2005-2006
Chevrolet
Avalanche 1500
LS
2005-2006
Chevrolet
Avalanche 1500
LT
2002-2003
Chevrolet
Avalanche 1500
North Face
2003
Chevrolet
Avalanche 1500
WBH
2002-2006
Chevrolet
Avalanche 1500
Z71
2005
Chevrolet
Silverado 1500 HD
Base
2001-2003,2005
Chevrolet
Silverado 1500 HD
LS
2001-2003,2005-2006
Chevrolet
Silverado 1500 HD
LT
2007
Chevrolet
Silverado 1500 HD Classic
LT
1999-2004
Chevrolet
Silverado 2500
Base
1999-2004
Chevrolet
Silverado 2500
LS
1999-2004
Chevrolet
Silverado 2500
LT
2004
Chevrolet
Silverado 2500
WT
2001-2005
Chevrolet
Silverado 2500 HD
Base
2001-2006
Chevrolet
Silverado 2500 HD
LS
2001-2010
Chevrolet
Silverado 2500 HD
LT
2007-2010
Chevrolet
Silverado 2500 HD
LTZ
2003-2010
Chevrolet
Silverado 2500 HD
WT
2007
Chevrolet
Silverado 2500 HD Classic
LS
2007
Chevrolet
Silverado 2500 HD Classic
LT
2007
Chevrolet
Silverado 2500 HD Classic
WT
2000-2001,2006
Chevrolet
Suburban 1500
Base
2000-2014
Chevrolet
Suburban 1500
LS
2000-2014
Chevrolet
Suburban 1500
LT
2006-2014
Chevrolet
Suburban 1500
LTZ
2002-2006
Chevrolet
Suburban 1500
Z71
2000-2001
Chevrolet
Suburban 2500
Base
2000-2013
Chevrolet
Suburban 2500
LS
2000-2013
Chevrolet
Suburban 2500
LT
2007
Chevrolet
Suburban 2500
LTZ
2000-2001,2006
Chevrolet
Tahoe
Base
2008-2013
Chevrolet
Tahoe
Hybrid
2000-2014
Chevrolet
Tahoe
LS
2000-2014
Chevrolet
Tahoe
LT
2007-2014
Chevrolet
Tahoe
LTZ
2007-2014
Chevrolet
Tahoe
PPV
2012-2014
Chevrolet
Tahoe
SSV
2002-2006
Chevrolet
Tahoe
Z71
2003-2008
Dodge
Ram 1500
Laramie
2002-2008
Dodge
Ram 1500
SLT
2006-2007
Dodge
Ram 1500
Sport
2004-2006
Dodge
Ram 1500
SRT-10
2002-2008
Dodge
Ram 1500
ST
2008
Dodge
Ram 1500
SXT
2006-2007
Dodge
Ram 1500
TRX4
1994-2002
Dodge
Ram 2500
Base
1994-2002
Dodge
Ram 3500
Base
2001-2003,2005-2006
GMC
Sierra 1500 HD
SLE
2001-2003,2005-2006
GMC
Sierra 1500 HD
SLT
2007
GMC
Sierra 1500 HD Classic
SLE
2007
GMC
Sierra 1500 HD Classic
SLT
2002-2004
GMC
Sierra 2500
Base
1999-2002
GMC
Sierra 2500
SL
1999-2004
GMC
Sierra 2500
SLE
1999-2004
GMC
Sierra 2500
SLT
2003-2004
GMC
Sierra 2500
WT
2002-2005
GMC
Sierra 2500 HD
Base
2001-2002,2006
GMC
Sierra 2500 HD
SL
2001-2010
GMC
Sierra 2500 HD
SLE
2001-2010
GMC
Sierra 2500 HD
SLT
2003-2010
GMC
Sierra 2500 HD
WT
2007
GMC
Sierra 2500 HD Classic
SL
2007
GMC
Sierra 2500 HD Classic
SLE
2007
GMC
Sierra 2500 HD Classic
SLT
2007
GMC
Sierra 2500 HD Classic
WT
2001-2014
GMC
Yukon
Denali
2010-2013
GMC
Yukon
Denali Hybrid
2008-2013
GMC
Yukon
Hybrid
2006
GMC
Yukon
SL
2000-2014
GMC
Yukon
SLE
2000-2014
GMC
Yukon
SLT
2001-2014
GMC
Yukon XL 1500
Denali
2006
GMC
Yukon XL 1500
SL
2000-2014
GMC
Yukon XL 1500
SLE
2000-2014
GMC
Yukon XL 1500
SLT
2000-2013
GMC
Yukon XL 2500
SLE
2000-2013
GMC
Yukon XL 2500
SLT
2011-2013
Ram
2500
ST
