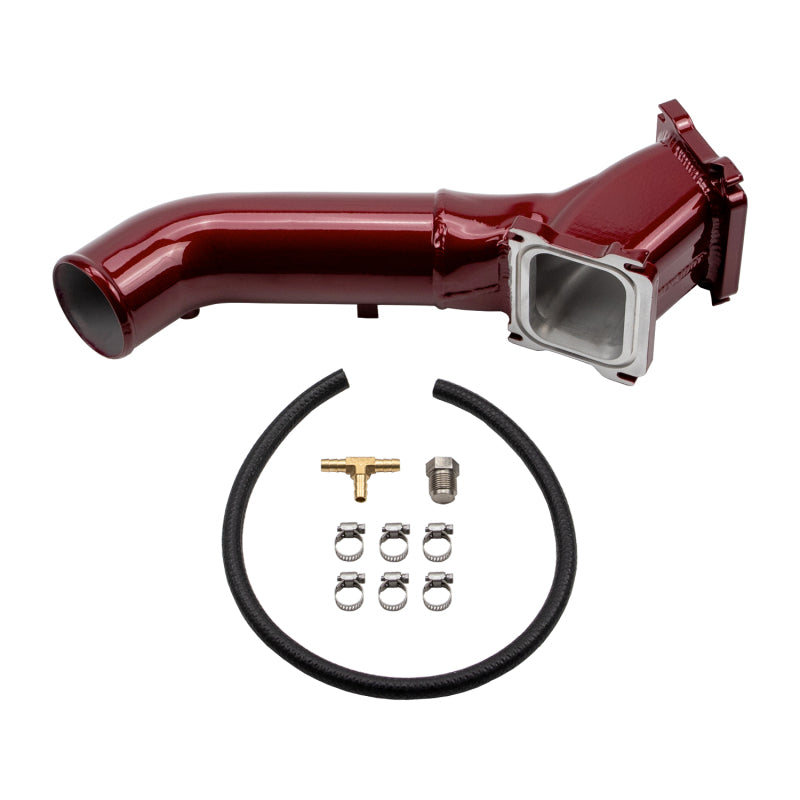

Wehrli 01-04 Chevrolet Duramax LB7 S300/S400 Single Turbo 3in Y-Bridge Kit - Raw

SKU: WCFWCF100615-RAW
$660.99

Not sure which part you need, or want to make sure it's in stock?

Give us a call. You won't get a robot, you'll get straight through to a real person who knows diesel.

📱 Call Us

3" High Flow Y-Bridge for custom fabrication use. Not a direct OEM replacement. Does bolt to OEM intake runners. 3" Bead Roll Connection at inlet. 14 ga Aluminum neck and TIG welded CNC machined billet aluminum center section and flanges. Includes bungs for MAP sensor installation and 1/8" NPT accessory port. Raw aluminum finish - requires additional finishing after purchase to prevent oxidation. The factory LB7 Duramax Y-bridge is a significant restriction in the engine intake tract limiting the engine's efficiency and ability to make power when big air and fuel system modifications are in play. This kit provides a larger, better flowing, more direct path to the intake runners for high horsepower Duramax performance engines to help them breathe more efficiently.

  • Includes MAP Sensor Bung, Bracket & Seal, 1/8" NPT Accessory Port (e.g. boost), 3" Silicone Boot & Stainless Steel T-bolt Clamps, New O-Ring Flange Seals, and an FPRV Block Off Kit for Proper Clearance from Bridge to Fuel Distribution Block
  • NOTE: If running a turbo other than factory a minimum T4 pedestal height with an S300 is 5" and with an S400 is 6" for proper clearance to Y-bridge.
  • CNC Machined Billet Aluminum Center Section and Flanges - TIG Welded Construction
  • Raw Aluminum Finish - Ready for Polishing, Painting, or Custom Powder Coating
  • Made in USA

This Part Fits:

Year Make Model Submodel
2001-2004 Chevrolet Silverado 2500 HD Base
2001-2004 Chevrolet Silverado 2500 HD LS
2001-2004 Chevrolet Silverado 2500 HD LT
2004 Chevrolet Silverado 2500 HD WT
2001-2004 Chevrolet Silverado 3500 Base
2001-2004 Chevrolet Silverado 3500 LS
2001-2004 Chevrolet Silverado 3500 LT
2004 Chevrolet Silverado 3500 WT
2002-2004 GMC Sierra 2500 HD Base
2001-2002 GMC Sierra 2500 HD SL
2001-2004 GMC Sierra 2500 HD SLE
2001-2004 GMC Sierra 2500 HD SLT
2003-2004 GMC Sierra 2500 HD WT
2002-2004 GMC Sierra 3500 Base
2001-2002 GMC Sierra 3500 SL
2001-2004 GMC Sierra 3500 SLE
2001-2004 GMC Sierra 3500 SLT
2004 GMC Sierra 3500 WT
